Products

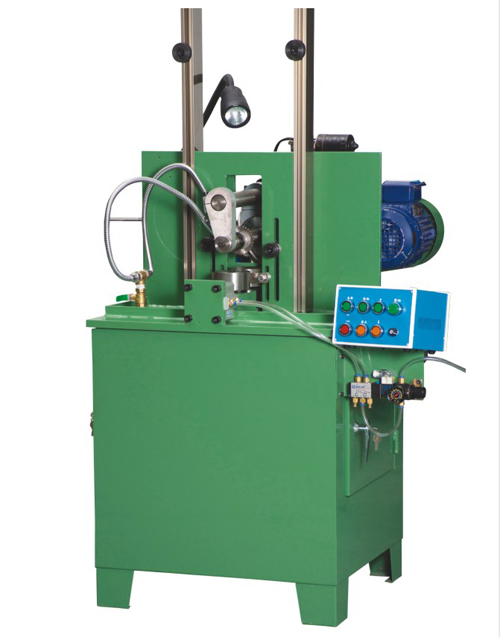

Grooving Machine For SWG Outer Ring

To make the groove on the inner diameter of spiral wound gasket's outer ring.


Send Inquiry


Description
Specification as following:
STYLE KXT E2000W
Grooving machine for SWG outer ring
Grooving ring thickness 2-4mm
Maximum ring OD 4000mm
Minimum ring ID 200mm
Total power 2.2kw
Spindle motor power 0.55kw
Feed moter power 0.04kw
Power supply 380V/220V for option, 3 phases
linear speed 0- mm/s
Machine measurement 950*800*1250mm
Machine net weight 320kg
