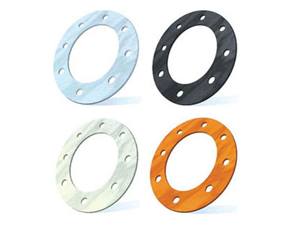

For decades, Asbestos gaskets were the industry standard for creating reliable, high-temperature seals in demanding industrial applications. While modern alternatives are now prevalent, understanding their composition, historical use, and specifications remains crucial for maintenance, safety protocols, and replacement projects. At Kaxite Seals, with our deep material science expertise, we provide this detailed resource to inform professionals about these legacy components.
Originally prized for their exceptional properties, asbestos gaskets were fabricated by combining chrysotile asbestos fibers with binding agents like rubber or graphite. This resulted in a composite material capable of withstanding extreme conditions where other materials would fail.
The performance of an asbestos gasket was defined by several critical parameters. Below is a detailed breakdown:
| Property / Grade | Standard Grade | High-Temp / Graphite Filled | Oil & Fuel Resistant (NBR Bound) |
|---|---|---|---|
| Asbestos Fiber Content | 75-80% | 70-75% | 80-85% |
| Binder Material | SBR Rubber | Graphite & Rubber | Nitrile Rubber (NBR) |
| Max Continuous Temp | 750°F (400°C) | 1000°F (538°C) | 500°F (260°C) |
| Min Continuous Temp | -100°F (-73°C) | -50°F (-46°C) | -40°F (-40°C) |
| Tensile Strength | 2,500 psi | 2,000 psi | 2,800 psi |
| Compression Set | 45% | 40% | 50% |
| Common Applications | Steam lines, general industrial | Exhaust systems, boilers | Refineries, fuel pipelines |
Asbestos gaskets were ubiquitous in industries prioritizing heat resistance and sealing reliability. Their use was widespread in:
Q: Are asbestos gaskets still legal to manufacture and use?
A: The manufacturing of new asbestos gaskets is heavily restricted or banned in most countries, including the United States, UK, Canada, Australia, and across the European Union, due to the severe health risks associated with asbestos fiber inhalation. However, existing asbestos-containing materials (ACMs) like old gaskets may still be present in legacy equipment, governed by strict containment, handling, and disposal regulations.
Q: What are the primary health risks of handling asbestos gaskets?
A: The main risk occurs when the gasket material is dry-cut, sanded, drilled, or deteriorates, releasing microscopic airborne fibers. Inhalation of these fibers can lead to serious respiratory diseases such as asbestosis, lung cancer, and mesothelioma, with symptoms often appearing decades after exposure. Safe handling requires rigorous safety protocols.
Q: How can I identify if an existing gasket contains asbestos?
A: Visual identification is unreliable. Asbestos gaskets often appear as grey, white, or layered compressed sheets, but many non-asbestos materials look similar. The only definitive method is laboratory analysis by a certified asbestos inspector using Polarized Light Microscopy (PLM) or Transmission Electron Microscopy (TEM). If in doubt, presume it contains asbestos and follow appropriate safety measures.
Q: What is the proper procedure for removing and disposing of an asbestos gasket?
A: Removal must be performed by trained and licensed asbestos abatement professionals. The area must be isolated, and a negative air pressure system used. Technicians wear full personal protective equipment (PPE), including respirators. The gasket must be kept wet during removal to suppress dust. All debris is sealed in leak-tight, labeled containers and disposed of at a licensed hazardous waste facility in compliance with local and national regulations.
Q: What are the modern, safe alternatives to asbestos gaskets offered by Kaxite Seals?
A> Kaxite Seals provides a full range of high-performance, non-asbestos sealing solutions. These include aramid fiber (e.g., Kevlar), glass fiber, carbon fiber, and compressed non-asbestos (CNAF) gaskets with binders like NBR, SBR, or PTFE. For extreme temperatures, we recommend flexible graphite gaskets or PTFE-based solutions. These materials meet or exceed the thermal and mechanical properties of legacy asbestos gaskets without the associated health hazards.
Q: In legacy systems, can I directly replace an asbestos gasket with a non-asbestos one?
A> Often, yes, but it requires careful selection. A direct replacement depends on the specific operating conditions—temperature, pressure, and media. A non-asbestos gasket must have equivalent or superior specifications. It is crucial to consult with an engineer or a specialist like Kaxite Seals to select the correct material (e.g., CNAF, graphite, PTFE) and ensure the flange load is adequate for the new gasket's sealing requirements.
Q: What standards governed the manufacture of asbestos gaskets?
A> Historically, they were produced under standards like ASTM F104 for non-metallic gasket materials, along with various MIL-specifications for military applications. Today, non-asbestos replacements are manufactured to updated international standards such as ASTM F1315, DIN 3754, and ISO 15528, ensuring quality and performance.
| Material | Max Temperature | Key Advantages | Typical Applications | Health & Safety |
|---|---|---|---|---|
| Chrysotile Asbestos (Legacy) | 750°F (400°C) | Excellent heat resistance, good compression, low cost (historically) | Steam, exhaust, chemical (historical) | Extremely Hazardous (Carcinogenic) |
| Kaxite Seals CNAF (Aramid/Glas Fiber) | 500°F (260°C) | Non-asbestos, good sealability, robust for general industrial use | Pumps, valves, general piping | Safe |
| Kaxite Seals Flexible Graphite | 1600°F (870°C) in inert gas | Superior high-temp resistance, excellent chemical inertness, conformable | Heat exchangers, high-temp flanges, aggressive chemicals | Safe |
| Kaxite Seals PTFE Based | 500°F (260°C) | Outstanding chemical resistance, anti-stick, FDA compliant options | Pharmaceutical, food & beverage, aggressive acids/alkalis | Safe |
Navigating the complexities of legacy sealing materials and their modern replacements requires a partner with technical depth and a commitment to safety. Kaxite Seals draws upon decades of industry knowledge to support engineers and maintenance teams in managing existing systems and specifying safe, high-performance sealing solutions for the future. Our product specialists are equipped to guide you through material selection, compliance issues, and installation best practices for your specific application requirements.
