What Are Ring Joint Gaskets?

Ring joint gaskets, often abbreviated as RTJ gaskets, are critical sealing components designed for high-pressure and high-temperature applications. They function as a pressure-energized seal, meaning the internal pressure of the system actually enhances the sealing force. These gaskets are precision-machined to fit into specially designed grooves in flanges, creating a robust metal-to-metal seal. When the flanges are bolted together, the gasket is compressed into the groove, with the system pressure further forcing the gasket's sealing faces against the groove walls. This mechanism makes them exceptionally reliable for preventing leaks in some of the most demanding industrial environments, such as oil and gas production, refining, chemical processing, and high-pressure steam systems. Unlike softer gasket materials, Ring Joint Gaskets maintain their integrity under extreme thermal cycling and high bolt loads.

Key Features and Advantages of Kaxite Seals Ring Joint Gaskets

Kaxite Seals specializes in manufacturing premium Ring Joint Gaskets that meet and exceed international standards. Our commitment to quality ensures optimal performance and safety for your critical operations.

• Superior Material Integrity: We use only certified raw materials, including stainless steels (304, 304L, 316, 316L), duplex steels, nickel alloys (Inconel 600, 625, 718), and carbon steels, each with full traceability.
• Precision Machining: Advanced CNC machining guarantees exacting tolerances as per API 6A, ASME B16.20, and ISO standards, ensuring a perfect fit in RTJ grooves.
• Exceptional Leak Prevention: Engineered for zero-leak performance in applications involving volatile, toxic, or expensive fluids under high pressure.
• High-Temperature & Pressure Resistance: Designed to perform reliably in services exceeding 1000°F (538°C) and pressures of 15,000 psi and beyond.
• Durability and Reusability: Properly installed Kaxite RTJ gaskets can often be reused, offering excellent long-term value and reducing downtime.
• Comprehensive Testing: Every batch undergoes rigorous dimensional inspection and material verification. We also offer optional hardness testing and surface finish analysis.

Technical Specifications and Product Parameters

Selecting the correct Ring Joint Gasket requires careful attention to several key parameters. Kaxite Seals provides gaskets in all standard and many specialized configurations.

Standard Types and Profiles

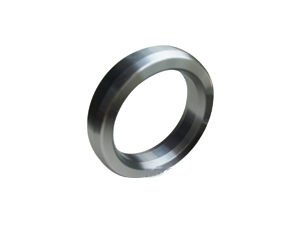

• R-Style (Octagonal): The most common profile. It provides an effective seal with good engagement and is widely used in API and ASME applications.

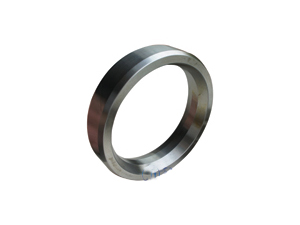

• RX-Style (Octagonal with Pressure Balancing): A modified version designed to be pressure-energized from both internal and external pressures. It often allows for a lower bolt torque.

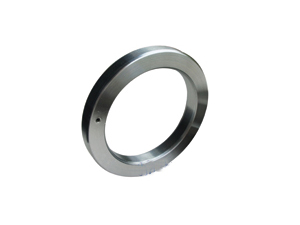

• BX-Style (Octagonal for High Pressure): Specifically designed for extreme pressures, typically in wellhead and Christmas tree equipment per API 6A. They have a higher sealing shoulder.
• Oval Ring: An older style, primarily used in certain refinery and pipeline applications. It requires higher seating stress.

Material Selection Guide

The choice of material is dictated by the service conditions, including pressure, temperature, and fluid corrosiveness.

Size and Pressure Class

Ring Joint Gaskets are defined by nominal pipe size (NPS), pressure class (e.g., 900, 1500, 2500), and the corresponding Ring Number (R/RX/BX number). Kaxite Seals manufactures gaskets for all standard classes per ASME B16.5 and API 6A specifications.

Installation and Handling Best Practices

Correct installation is paramount to achieving a leak-free seal with a Ring Joint Gasket. Kaxite Seals recommends following these procedures:

1. Inspection: Before installation, thoroughly inspect the gasket and the flange grooves for any damage, dents, scratches, or foreign material. Clean both the gasket seating surfaces and the grooves meticulously.
2. Lubrication: Apply a thin, even film of anti-seize or high-temperature lubricant approved for the service to the gasket and the flange groove. This prevents galling and aids in proper seating.
3. Alignment: Carefully place the gasket into the groove of the lower flange. Ensure it sits flat and is not twisted.
4. Bolt Torquing: Use a calibrated torque wrench and follow a cross-pattern bolting sequence. Tighten in multiple incremental steps (e.g., 30%, 60%, 100% of final torque) to ensure even compression. Always adhere to the equipment manufacturer's or engineering specification for the final target torque value.
5. Re-torquing: For critical services, consider a re-torque cycle after an initial heat-up and cool-down period to compensate for any bolt relaxation.

Warning: Never use a hammer or excessive force to seat the gasket. Do not reuse a gasket that shows signs of flattening, excessive compression, or scoring.

Frequently Asked Questions (FAQ) About Ring Joint Gaskets

Q: What is the main difference between R, RX, and BX style ring joint gaskets?
A: The primary differences lie in their design and application pressure ranges. R-style is the standard for general high-pressure piping. RX-style is a pressure-energized variant that can seal effectively with lower bolt torque and is often interchangeable with R-style in the same groove. BX-style is engineered for much higher pressures (commonly 5,000 to 20,000+ psi) as per API 6A, features a larger sealing contact area, and is not interchangeable with R or RX gaskets. Each requires a specifically machined flange groove.

Q: Can I reuse a ring joint gasket?
A: Kaxite Seals gaskets are manufactured for durability and can often be reused if they are removed carefully and inspected thoroughly. The gasket must show no signs of permanent deformation, flattening, galling, or deep scratches on the sealing surfaces. The ring should still have a distinct "shoulder" profile. If any doubt exists, replacement with a new Kaxite gasket is always the safest and most reliable practice to ensure leak-free operation.

Q: How do I select the right material for my application?
A: Material selection is based on three main factors: the fluid's corrosiveness (pH, presence of H2S, chlorides), the operating temperature, and the required mechanical strength. Consult the chemical compatibility charts for the process fluid. For high-temperature sour service (containing H2S), a nickel alloy like Inconel 625 is typically specified. For standard hydrocarbon service at moderate temperatures, soft iron or low-carbon steel is common. The Kaxite Seals technical team can provide specific guidance based on your service conditions.

Q: What causes a ring joint gasket to leak?
A: Leaks can stem from several issues: incorrect gasket selection (wrong size, style, or material), damage to the gasket or flange grooves during handling/installation, improper installation (insufficient or uneven bolt torque, lack of lubrication), foreign material trapped in the groove, flange misalignment, or using a gasket that has exceeded its service limits (e.g., over-compressed, corroded).

Q: Are Kaxite Seals ring joint gaskets compliant with international standards?
A: Yes, absolutely. Kaxite Seals manufactures Ring Joint Gaskets in full compliance with major international standards, including ASME B16.20 (Pipe Flanges and Flanged Fittings), API 6A (Wellhead and Christmas Tree Equipment), API 17D (Subsea Equipment), ISO 10423, and NACE MR0175/ISO 15156 for sour service environments. Certificates of Conformity (C of C) and Material Test Reports (MTR) are available for all products.

Q: What is the lead time for custom or large orders of specialty materials?
A: Standard material gaskets (e.g., 316 Stainless Steel, Soft Iron) are typically available from stock or with a short lead time. For large volume orders or gaskets made from specialty alloys like Inconel or Duplex steels, lead times vary based on material procurement and machining complexity. Please contact the Kaxite Seals sales department with your specific requirements for an accurate production and delivery schedule. We prioritize efficient manufacturing to meet project timelines.
