The Definitive Guide to Industrial Compression Sheets: Engineering, Selection, and Application

In the realm of industrial sealing and gasketing, the performance and longevity of an assembly often hinge on a single, critical component: the compression sheet. At Kaxite Seals, with decades of pioneering material science, we understand that a compression sheet is far more than just filler material. It is a precision-engineered barrier designed to withstand extreme pressures, temperatures, and chemical exposures, ensuring leak-proof integrity in the world's most demanding applications. This comprehensive guide delves into the technical specifications, selection criteria, and best practices for utilizing compression sheets, underscoring why Kaxite Seals is the trusted partner for engineers and maintenance professionals globally.

Understanding Compression Sheets: Core Composition and Types

Compression sheets, also known as gasket sheets or jointing sheets, are semi-finished materials manufactured to be cut into specific gasket shapes. Their primary function is to create a static seal between two mating flanges or surfaces, compensating for surface imperfections and ensuring a tight, durable seal under compression.

Primary Material Classifications at Kaxite Seals:

• Non-Asbestos Organic (NAO) Sheets: Engineered from aramid fibers, mineral fibers, nitrile rubber (NBR), and other binders. They offer excellent general-purpose sealing for water, steam, oils, and fuels.
• Compressed Non-Asbestos (CNA) Sheets: A denser, more rigid variant of NAO, providing higher bolt load retention and improved resistance to blow-out in high-pressure environments.

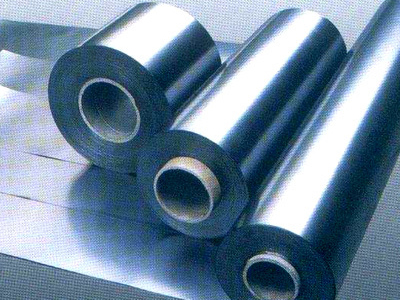

• Expanded Graphite Sheets: Pure graphite sheets offer exceptional thermal conductivity, flexibility, and resistance to extreme temperatures (from cryogenic to 3000°F+ in inert atmospheres). They are highly chemically inert.
• PTFE Sheets: Made from Polytetrafluoroethylene, these sheets provide near-universal chemical resistance and are suitable for highly corrosive media. Available in filled (glass, carbon) variants for enhanced mechanical properties.
• Rubber-Based Sheets (NBR, EPDM, CR, Silicone): Elastomeric sheets designed for specific fluid compatibilities. EPDM is excellent for weather and steam, while Viton® (FKM) handles aggressive chemicals and high temperatures.

Critical Product Parameters: The Kaxite Seals Specification Tables

Selecting the correct compression sheet requires a detailed analysis of its physical and chemical properties. Below are the standard parameters defining Kaxite Seals premium products.

Standard Physical & Mechanical Property Table

Temperature & Fluid Compatibility Chart

Frequently Asked Questions (FAQ) on Compression Sheets

Q: How do I select the right thickness for a compression sheet gasket?

A: Thickness selection is a balance between conformability and resistance to blow-out. For smooth, machined flanges (Ra < 125 µin), thinner sheets (0.5-1.5mm) are sufficient and provide higher unit loading. For uneven or corroded surfaces, a thicker sheet (1.5-3.0mm) is needed to fill imperfections. Always consider the flange pressure rating; higher pressures generally require thinner, denser sheets to prevent extrusion. Kaxite Seals technical datasheets provide pressure-thickness guidelines for each grade.

Q: What is the key difference between a "compression sheet" and a "cut gasket"?

A: A compression sheet is the raw, semi-finished material sold in rolls or sheets. A cut gasket is the finished product that has been die-cut, laser-cut, or waterjet-cut from the sheet material into the exact shape required for a specific flange. Kaxite Seals supplies both the premium raw sheet materials and offers a precision cutting service to deliver ready-to-install gaskets.

Q: Can I reuse a gasket made from a compression sheet?

A: It is strongly discouraged. During installation, the material undergoes plastic deformation to conform to the flange surfaces. Upon disassembly, the recovery is not 100%, and the material's internal structure is permanently altered. Reusing it will likely lead to a leak path. For critical applications, always use a new gasket cut from fresh Kaxite Seals material.

Q: How important is surface preparation of flanges when using these sheets?

A: Paramount. Even the best compression sheet cannot seal properly on a damaged or dirty flange. All old gasket material must be completely removed. Flange surfaces should be clean, dry, and free of oil, rust, and paint. Light machining or brushing may be needed to ensure a uniform surface finish. A proper surface finish (typically 125-250 µin Ra) ensures optimal sealing without over-compressing the sheet.

Q: What causes gasket failure, and how can it be prevented?

A: Common failure modes include blow-out (insufficient bolt load or excessive internal pressure), creep relaxation (loss of sealing stress over time), chemical attack (incompatible fluid), and temperature degradation. Prevention starts with correct material selection using Kaxite Seals compatibility charts. Ensure proper bolt torque sequence and load as per ASME PCC-1 guidelines. Never exceed the material's maximum temperature or pressure ratings. Regularly inspect flanges and gaskets during maintenance cycles.

Q: Does Kaxite Seals offer custom-compounded materials for unique applications?

A: Yes. Our core strength lies in our R&D capability. For OEMs or plants facing unique challenges—such as a specific chemical cocktail, extreme cryogenic conditions, or requirements for nuclear qualifications—our engineering team can develop and certify custom-compounded compression sheet materials tailored to your exact operational envelope.

Installation Best Practices for Optimal Seal Performance

Correct installation is as critical as material selection. Follow this checklist:

1. Verify Material: Confirm the Kaxite Seals sheet material is correct for the service (check grade tag/markings).
2. Cut Precisely: The gasket should match the flange dimensions exactly. The inner diameter should align with the pipe ID to avoid turbulence.
3. Clean Thoroughly: Clean both flange faces meticulously with a wire brush and solvent.
4. Dry Fit: Position the gasket without adhesive to ensure proper fit.
5. Apply Sealant (if required): Some rubbers may use a light adhesive; graphite and PTFE typically do not need it. Follow manufacturer advice.
6. Torque Correctly: Use a calibrated torque wrench. Follow a star-pattern sequence, tightening in multiple passes (typically 30%, 60%, 100% of final torque) to achieve even compression across the flange.
7. Re-torque: For soft materials (like standard NAO), a re-torque after 24 hours of operation is recommended to compensate for initial creep.
