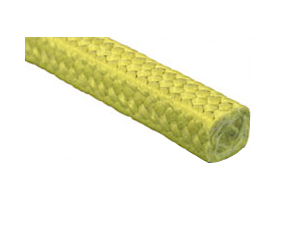

Aramid fiber packing, often referred to by its well-known brand name Kevlar®, represents a pinnacle of engineering in the sealing industry. As a high-performance, non-asbestos sealing material, it is specifically designed to handle the most demanding sealing challenges across a vast array of industrial applications. At Kaxite Seals, we have mastered the formulation and manufacturing of this exceptional material, providing engineers and maintenance professionals with a reliable solution for extreme conditions where traditional packings fail.
The core strength of aramid fiber packing lies in its unique molecular structure. The aramid fibers are characterized by long, rigid polymer chains with strong directional bonds, resulting in a material with exceptional tensile strength, remarkable thermal stability, and outstanding resistance to wear and abrasion. Unlike metallic packings, it is non-corrosive and demonstrates excellent performance in a wide pH range, making it versatile for chemical services.
**Key Product Parameters and Specifications**
To understand the capabilities of Kaxite Seals' Aramid Fiber Packing, it is essential to review its technical parameters. The following list and table detail the critical specifications that define its performance envelope.
**Primary Material Characteristics:**
* **Base Fiber:** High-purity, high-tenacity meta- or para-aramid fibers.
* **Lubrication:** Impregnated with high-grade PTFE (Teflon®) or specialty graphite for reduced friction and shaft wear.
* **Binder:** Advanced polymer binders ensure structural integrity and prevent fiber washout.
* **Form:** Supplied as spool packing, die-molded rings, or sheet material.
**Performance Specification Table:**
| Parameter | Typical Value / Range | Notes / Standards |
| :--- | :--- | :--- |
| **Temperature Range** | -100°C to +300°C (-148°F to +572°F) | Short-term peaks up to 350°C (662°F) possible. |
| **pH Range** | 2 - 12 | Excellent chemical resistance across this spectrum. Specific grades available for more aggressive media. |
| **Density** | 1.2 - 1.5 g/cm³ | Varies with lubrication content and braid style. |
| **Tensile Strength** | Very High (> 3 GPa for fibers) | Exceptional resistance to blow-out and extrusion. |
| **Thermal Conductivity** | Low | Good insulation properties, reduces heat transfer to gland hardware. |
| **Coefficient of Friction** | Low (0.1 - 0.3) | PTFE or graphite impregnation ensures smooth operation. |
| **Pressure Rating** | Up to 25 MPa (3600 psi) | Suitable for high-pressure pump and valve stems. |
| **Speed** | Suitable for rotary, reciprocating, and static service | Excellent for centrifugal pumps, mixers, and valve stems. |
| **Compatibility** | Hydrocarbons, steam, hot oils, acids, alkalis, many solvents | Not recommended for strong oxidizing acids or molten metals. |
**Applications of Kaxite Seals Aramid Fiber Packing**
The robust parameter set makes our packing ideal for severe-duty applications:
* **Chemical & Petrochemical Processing:** Pumps and valves handling acids, alkalis, hydrocarbons, and solvents.
* **Power Generation:** Boiler feed pumps, turbine seals, and general high-temperature steam service.
* **Oil & Gas:** Downhole tools, Christmas tree valves, pipeline pumps, and refining equipment.
* **Marine & Shipbuilding:** Stern tube seals, pump shafts, and valve stems in engine rooms.
* **Pulp & Paper:** High-temperature and high-pressure services in digester and boiler areas.
* **General Industrial:** Agitators, mixers, and any application requiring a durable, non-metallic sealing solution.
**Frequently Asked Questions (FAQ) About Aramid Fiber Packing**
**Q: What exactly is aramid fiber packing, and how does it differ from graphite or PTFE packings?**
**A:** Aramid fiber packing is a braided sealing material made from synthetic aromatic polyamide fibers, known for extreme strength and heat resistance. Unlike soft graphite or pure PTFE packings, aramid offers vastly superior tensile strength and abrasion resistance. It handles higher pressures and velocities than graphite-based styles and can withstand much higher temperatures than standard PTFE. Think of it as the high-strength, durable option for demanding services where other non-metallics might extrude or wear too quickly.
**Q: Can Kaxite Seals Aramid Packing be used for both rotating and reciprocating shaft applications?**
**A:** Yes, absolutely. Its unique combination of strength, flexibility, and low friction makes it exceptionally versatile. The braided construction allows it to conform to the shaft or rod while the aramid fibers provide the backbone to resist the dynamic forces of both rotary motion (like in centrifugal pumps) and back-and-forth reciprocating motion (like in plunger pumps or compressor rods). Proper selection of the lubricant (PTFE for general use, graphite for higher temperatures) is key to optimizing performance for the specific motion.
**Q: What are the installation tips for achieving the best performance and longest life?**
**A:** Proper installation is critical. Always clean the stuffing box and shaft thoroughly. Cut rings on a clean, sharp mandrel of the correct diameter using a 45-degree scarf cut, staggering the joints 90 degrees apart around the shaft. Follow the manufacturer's recommended number of rings—typically, the box is filled with 3-6 rings. Tighten the gland follower evenly and only hand-tight initially. After startup and thermal cycling, perform a follow-up adjustment to achieve a slight leakage for lubrication and cooling. Never overtighten, as this causes excessive heat and wear.
**Q: Is this packing suitable for handling aggressive chemicals like sulfuric acid or sodium hydroxide?**
**A:** Kaxite Seals Aramid Fiber Packing exhibits excellent resistance to a wide range of chemicals, including diluted acids and bases within its specified pH range of 2-12. For specific aggressive media like concentrated sulfuric acid or hot concentrated caustic solutions, it is crucial to consult our technical data sheets. We offer specialized grades with enhanced chemical resistance for extreme applications. For strong oxidizing agents (e.g., nitric acid at high concentration), aramid fiber is generally not recommended.
**Q: How does the temperature resistance compare to other high-temperature packings like graphite foil?**
**A:** While flexible graphite packings can operate in inert atmospheres up to 450°C or higher, they can oxidize in steam or air above 400°C. Aramid fiber packing, particularly grades impregnated with temperature-stable lubricants, offers reliable long-term service in oxidizing atmospheres (air, steam) up to 300°C, with short-term peaks higher. Its advantage over graphite is its mechanical strength—it resists extrusion under high pressure and is less prone to handling damage during installation.
**Q: Why should I choose Kaxite Seals brand over other aramid packing suppliers?**
**A:** Kaxite Seals brings decades of sealing expertise to the formulation of our aramid fiber packing. We don't just supply a generic material; we engineer solutions. Our packings feature a consistent, high-purity fiber blend, optimal and uniform lubricant impregnation, and precise braiding tension for uniform density and sealing force. This results in predictable performance, longer service life, reduced maintenance downtime, and superior protection for your valuable equipment. Our technical support team can help you select the precise grade for your application.
