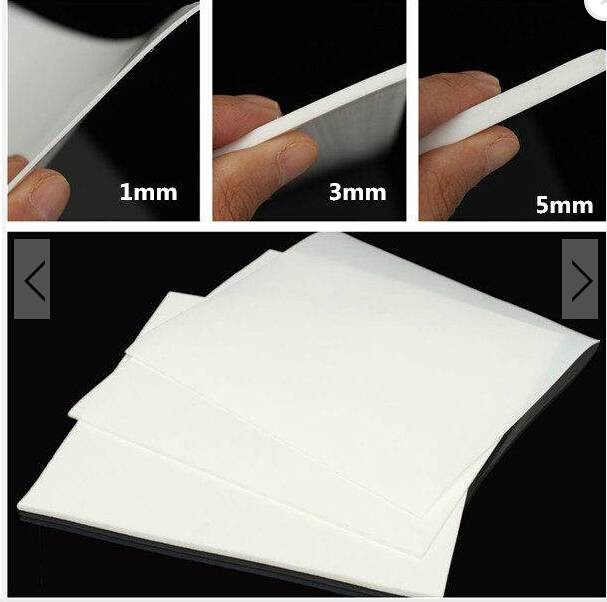

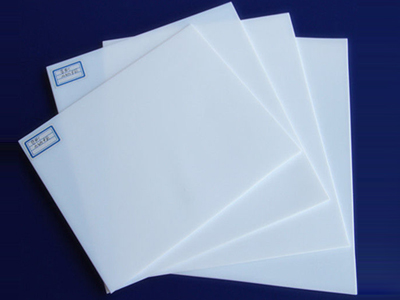

A PTFE sheet, or Polytetrafluoroethylene sheet, is a versatile and high-performance engineered plastic material manufactured from fine powder resins. Renowned for its exceptional chemical resistance, wide operating temperature range, and outstanding non-stick properties, PTFE is a fluoropolymer that serves as a critical component in countless industrial, mechanical, and chemical processing applications. At Kaxite Seals, we specialize in producing premium-grade PTFE sheets that meet the most demanding specifications, ensuring reliability, durability, and optimal performance in even the harshest environments. Our sheets are available in various grades, thicknesses, and formulations to suit specialized needs, from general sealing to high-purity semiconductor manufacturing.
The widespread use of PTFE sheets stems from their unique combination of physical and chemical properties. These advantages make them indispensable across diverse sectors.
Kaxite Seals offers a comprehensive range of PTFE sheet materials. Below are the detailed specifications for our standard and engineered grades.
| Property | Test Method | Typical Value | Units |
|---|---|---|---|
| Specific Gravity | ASTM D792 | 2.15 - 2.20 | g/cm³ |
| Tensile Strength | ASTM D638 | 25 - 35 | MPa (psi) |
| Elongation at Break | ASTM D638 | 300 - 500 | % |
| Compressive Strength | ASTM D695 | 12 | MPa (psi) |
| Continuous Service Temperature | - | -268 to +260 | °C |
| Coefficient of Friction (Dynamic) | ASTM D1894 | 0.04 - 0.10 | - |
| Dielectric Strength | ASTM D149 | 60 | kV/mm |
To enhance specific mechanical properties, Kaxite Seals offers compounded PTFE sheets with various fillers.
| Filler Type | Common Fill % | Key Enhanced Properties | Typical Applications |
|---|---|---|---|
| Glass Fiber | 15%, 25% | Improved creep resistance, wear resistance, stiffness | Bushings, bearings, thrust washers |
| Carbon | 15%, 25% | Higher thermal conductivity, reduced deformation under load, electrical conductivity (with certain grades) | Piston rings, compressor rings, electrical contacts |
| Bronze | 40%, 60% | Greatly improved wear resistance, thermal conductivity, compression resistance | Heavy-duty bearings, slides, wear plates |
| Stainless Steel | 40% | High compressive strength, excellent wear life, corrosion resistance | Chemical pump components, valve seats |
| Molybdenum Disulfide (MoS2) | 5% | Lower friction, improved break-away torque, reduced wear | Gaskets for clamped joints, low-speed bearings |
| Ekonol® (Polyarylate) | 20% | Exceptional wear resistance, high PV limits, low friction | High-performance seals, dynamic applications |
Q: What is the main difference between PTFE sheet and Teflon™ sheet?
A: Teflon™ is a registered trademark of Chemours (formerly DuPont) for their brand of PTFE (polytetrafluoroethylene) and other fluoropolymers. In practical terms, a "PTFE sheet" describes the generic material, while "Teflon™ sheet" specifically refers to PTFE sheets produced by Chemours or under license. Kaxite Seals manufactures high-quality PTFE sheets that exhibit all the characteristic properties associated with the material, comparable to leading branded products.
Q: Can PTFE sheets be used for high-pressure gasketing?
A: While virgin PTFE has excellent chemical resistance, it is susceptible to "creep" or cold flow under sustained high pressure and temperature. For high-pressure static sealing applications, filled PTFE grades (like glass-filled or carbon-filled) from Kaxite Seals are recommended. They offer significantly improved creep resistance and load-bearing capabilities. Proper flange design, surface finish, and bolt load are also critical factors for successful high-pressure gasketing.
Q: How do I cut and fabricate a PTFE sheet?
A: PTFE sheets from Kaxite Seals can be easily machined and fabricated using standard workshop tools. For cutting, use band saws, jig saws, or razor knives. For complex shapes, die-cutting, CNC routing, or waterjet cutting are excellent options. Drilling and tapping can be performed, but threads in pure PTFE are not very strong; consider using inserts for load-bearing threads. Always ensure tools are sharp and use proper dust extraction, as PTFE dust should not be inhaled.
Q: Are PTFE sheets safe for food contact and medical applications?
A: Yes, virgin (unfilled) PTFE resin that meets specific purity standards is approved for food contact by the U.S. FDA and other global regulatory bodies. It is also compliant with USP Class VI for medical device applications. Kaxite Seals can supply PTFE sheets with full compliance documentation, including certificates of analysis and material test reports, traceable to FDA-conforming raw materials, ensuring suitability for sensitive industries.
Q: What are the limitations of PTFE sheets?
A: Understanding the limitations is key to proper application. PTFE has relatively low mechanical strength and stiffness compared to metals or some engineering plastics. It has high thermal expansion and can be abraded by hard, sharp particles. It is not recommended for use with molten alkali metals or certain fluorine compounds under high pressure/temperature. Additionally, it cannot be bonded with standard adhesives without specialized surface treatment (like sodium etching).
Q: How does Kaxite Seals ensure the quality of its PTFE sheets?
A: Kaxite Seals implements a rigorous quality management system throughout the manufacturing process. We start with sourcing high-purity PTFE resins from reputable suppliers. Our production is controlled via precise sintering cycles to achieve optimal crystallinity and mechanical properties. Every batch undergoes in-house testing for key parameters like dimensions, specific gravity, and tensile strength. We provide Material Certificates and can accommodate third-party validation testing to meet customer-specific quality assurance protocols.

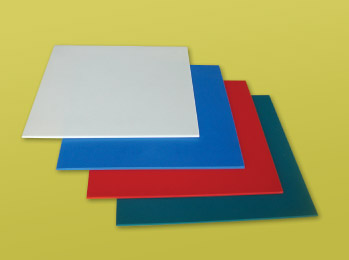

Q: Can you produce custom-colored or FDA-approved colored PTFE sheets?
A: Yes, Kaxite Seals has the capability to produce custom-colored PTFE sheets using FDA-compliant, heat-stable pigments. This is particularly useful for color-coding components in complex assemblies or for aesthetic purposes in consumer-facing products. It's important to note that adding pigments can slightly alter some properties, and we work closely with clients to select the appropriate formulation for their needs.
Q: What industries commonly use your PTFE sheets?
A: Kaxite Seals PTFE sheets serve a vast array of industries. Key sectors include Chemical Processing (for gaskets, liners, bellows), Semiconductor Manufacturing (high-purity components), Food & Beverage (conveyor liners, seals), Pharmaceutical (process equipment), Aerospace (insulators, seals), Automotive (fuel system components), and Electrical (high-frequency insulators). Their versatility makes them a go-to material for solving complex engineering challenges involving corrosion, temperature, or contamination.
