Ceramic fiber, also known as alumina-silica fiber or refractory ceramic fiber (RCF), represents a cornerstone of modern industrial insulation and high-temperature sealing technology. Engineered from a blend of alumina (Al2O3) and silica (SiO2), this synthetic material is spun or blown into a lightweight, highly flexible textile with exceptional thermal properties. At Kaxite Seals, we specialize in manufacturing premium-grade ceramic fiber products designed to deliver unmatched performance, safety, and longevity in the most demanding environments, from aerospace and power generation to metal processing and petrochemical refining.
The fundamental appeal of ceramic fiber lies in its unique combination of characteristics. Unlike traditional bulk insulation, it offers low thermal conductivity, minimal heat storage, and excellent thermal shock resistance. This allows industrial equipment to heat up and cool down rapidly without risking damage from stress fractures. Furthermore, its low biopersistent fiber structure (in biosoluble formulations) and chemical stability make it a reliable choice for containing heat and process gases safely.
### Key Product Parameters and Specifications
To make an informed decision for your application, understanding the technical specifications is crucial. Below is a detailed breakdown of the core parameters that define Kaxite Seals ceramic fiber products.
#### 1. Temperature Rating
This is the most critical parameter, indicating the maximum continuous use temperature and the classification limit.
| Classification | Max Continuous Use Temperature | Limit Temperature (24hrs) | Typical Al2O3 Content |
| :--- | :--- | :--- | :--- |
| Standard Grade | 1260°C (2300°F) | 1430°C (2606°F) | 44-47% |
| High Purity Grade | 1400°C (2552°F) | 1540°C (2804°F) | 47-52% |
| Zirconia Grade | 1600°C (2912°F) | 1760°C (3200°F) | 39% (with 15% ZrO2) |
#### 2. Physical and Thermal Properties
These properties determine the insulation efficiency and handling characteristics.
* **Thermal Conductivity:** Measured in W/m·K at various mean temperatures. For example, Kaxite Seals standard board (128kg/m³) typically shows:
* 0.09 W/m·K at 400°C
* 0.16 W/m·K at 800°C
* 0.28 W/m·K at 1000°C
* **Bulk Density:** Available in a range to suit structural and insulation needs.
* **Felts/Blankets:** 64 kg/m³, 96 kg/m³, 128 kg/m³.
* **Boards:** 250 kg/m³, 300 kg/m³, 320 kg/m³.
* **Modules:** 200 kg/m³, 220 kg/m³.
* **Linear Shrinkage:** A key indicator of long-term stability. After 24 hours at max temperature, shrinkage is typically ≤ 2% for premium grades.
* **Fiber Diameter:** Ranges from 2.0 to 4.5 microns on average. Finer fibers contribute to lower thermal conductivity and better handling.
* **Chemical Composition:** Primarily Al2O3 and SiO2, with trace elements. Biosoluble grades are engineered to have reduced bio-persistence.
* **Tensile Strength:** Varies by product form; boards and modules exhibit high strength for structural applications.
#### 3. Product Forms and Applications
Kaxite Seals ceramic fiber is engineered into multiple forms to address specific application challenges.
| Product Form | Key Characteristics | Primary Applications |
| :--- | :--- | :--- |
| **Blanket / Felt** | Flexible, needled structure, excellent resilience. Comes with or without coatings (e.g., aluminum foil). | Furnace curtains, expansion joint packing, pipe insulation, weld stress relief. |
| **Board / Plate** | Rigid, vacuum-formed, good compressive strength, can be machined. | Back-up insulation for fireproofing, kiln car tops, burner blocks, insulating baffles. |
| **Module** | Folded blanket pre-compressed and anchored to a metal plate. Quick installation, energy-efficient. | Lining for industrial furnaces (forge, heat treat, petrochemical cracking). |
| **Paper / Sheet** | Thin, flexible, uniform texture. High tear resistance. | Gaskets, spool wrapping, high-temperature separation layers. |

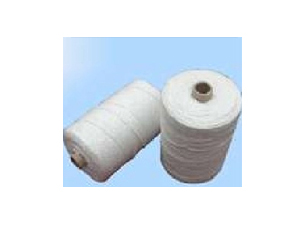

| **Rope / Cord** | Braided or twisted from yarn, often with Inconel® or other alloy wire reinforcement. | Door seals, expansion joint seals, stuffing box packing for valves and flanges. |
| **Textile (Cloth, Tape)** | Woven from ceramic fiber yarn, often with fiberglass or stainless steel wire reinforcement. | Fire curtains, protective blankets, weld protection, flexible coupling insulation. |
| **Vermiculite / Castable** | Mixes containing ceramic fiber for trowel or gunning application. | Monolithic linings, patching furnace linings, sealing complex geometries. |
### Ceramic Fiber FAQ: Your Questions Answered
**Q: What is the primary safety concern with ceramic fiber, and how does Kaxite Seals address it?**
A: Historically, the primary concern has been related to airborne fiber dust, which requires careful handling. Kaxite Seals prioritizes safety by offering biosoluble (alkaline earth silicate, AES) fiber options. These fibers are specifically designed to dissolve rapidly in lung fluid if inhaled, significantly reducing any potential health risk compared to traditional RCF. We always recommend following proper handling procedures, including using appropriate PPE (mask, gloves, long sleeves) during installation and cutting in well-ventilated areas.
**Q: How do I choose between a ceramic fiber blanket, board, and module?**
A: The choice depends on your application's temperature, required structural integrity, and installation method. Use **blankets** for flexible wrapping, lining curved surfaces, or packing. Choose **boards** where you need a rigid, self-supporting insulation that can be cut to precise shapes or needs to bear a light load. **Modules** are the preferred solution for fast, efficient lining of large furnace walls and roofs, offering excellent heat storage characteristics and long service life with integrated anchoring.
**Q: Can ceramic fiber get wet? What happens if it does?**
A: While ceramic fiber itself is not hygroscopic, it can absorb water. If it gets wet, its insulating properties are temporarily reduced until the water evaporates. More critically, rapid heating of soaked fiber can cause steam generation, potentially damaging the product's structure. Kaxite Seals recommends storing products in a dry place. If installation in a damp environment is unavoidable, a slow, controlled drying-out period is essential before bringing the system to full operational temperature.
**Q: What is the difference between alumina-silica ceramic fiber and polycrystalline mullite fiber (PMF)?**
A: They represent different generations of ceramic fiber. Standard **alumina-silica fiber** (like Kaxite Seals standard and high-purity grades) is amorphous and offers excellent performance up to ~1400°C. **Polycrystalline Mullite Fiber (PMF)** is a higher-end, crystalline fiber with a use temperature up to 1600°C or more. It has superior high-temperature stability, near-zero shrinkage, and higher chemical resistance but comes at a significantly higher cost. For most industrial applications below 1400°C, high-purity amorphous ceramic fiber provides the optimal balance of performance and value.
**Q: How is ceramic fiber installed in a high-temperature furnace?**
A: For furnace linings, the most common method is using pre-fabricated **modules**. These are mechanically anchored to the furnace shell using welded studs and a speed clip or cup-and-cone washer system. The modules expand slightly when heated, creating a tight, seamless insulating layer with minimal heat loss. For smaller areas or repairs, blankets can be layered and secured with ceramic or metal anchors, and boards can be cut to size and anchored in place. Kaxite Seals provides detailed installation guides and technical support for all our product forms.
**Q: Is ceramic fiber resistant to chemical attack?**
A: Ceramic fiber exhibits good resistance to most acids and alkalis at high temperatures, though its resistance is not universal. It can be attacked by hydrofluoric acid, phosphoric acid, and strong alkalis like molten caustic soda. In environments with high concentrations of corrosive vapors or slag, a protective coating or a different type of refractory (e.g., zirconia-based) may be required. Consulting Kaxite Seals' technical data sheets for specific chemical compatibility is advised for harsh processes.
**Q: What are the key advantages of specifying Kaxite Seals ceramic fiber products?**
A: Specifying Kaxite Seals ensures you receive products engineered for consistency and reliability. Our advantages include:
* **Precise Density Control:** Uniform density across all batches ensures predictable thermal performance.
* **Low Shot Content:** Minimal non-fibrous particles ("shot") result in better flexibility, lower thermal conductivity, and reduced dust.
* **Superior Tensile Strength:** Our needling and binding processes create products that withstand handling and thermal cycling without falling apart.
* **Comprehensive Range:** From basic blankets to high-performance modules and biosoluble options, we provide a solution for every high-temperature challenge.
* **Technical Expertise:** Our support team offers application-specific guidance to optimize insulation design and longevity.
**Q: How does ceramic fiber contribute to energy efficiency?**
A: Its contribution is substantial. Due to its very low thermal conductivity and heat storage capacity, ceramic fiber linings minimize heat loss through furnace walls. This allows for faster heat-up times, reduced fuel consumption to maintain temperature, and improved temperature uniformity within the working chamber. The energy savings often result in a rapid payback period for the insulation investment. Using engineered solutions like Kaxite Seals modules further enhances efficiency by minimizing heat leakage through joints.
Choosing the right high-temperature insulation is a critical engineering decision that impacts safety, operational cost, and productivity. The detailed parameters and forms outlined here provide a foundation for evaluating ceramic fiber for your specific needs. For applications requiring resilience up to 1600°C, chemical stability, and superior thermal management, ceramic fiber remains an indispensable material. Kaxite Seals is committed to advancing this technology, providing not just materials but reliable thermal solutions backed by rigorous testing and expert support.
