The Definitive Guide to Serrated Gaskets: Engineering, Selection, and Performance
In the demanding world of industrial fluid containment, where pressures soar, temperatures fluctuate, and media can be highly aggressive, the integrity of the sealing point is non-negotiable. For decades, one style of gasket has proven exceptionally reliable for creating a robust, metal-to-metal seal in these challenging environments: the Serrated Gaskets. Unlike standard flat gaskets, serrated gaskets are engineered with precision-cut concentric grooves or serrations on one or both faces. These serrations bite into the flange surfaces, creating multiple concentric lines of contact that dramatically enhance sealing performance by increasing surface pressure and creating a highly effective labyrinth seal against leakage. At Kaxite Seals, we leverage over two decades of metallurgical and sealing expertise to manufacture serrated gaskets that set the benchmark for reliability in critical applications across oil & gas, chemical processing, power generation, and heavy machinery.

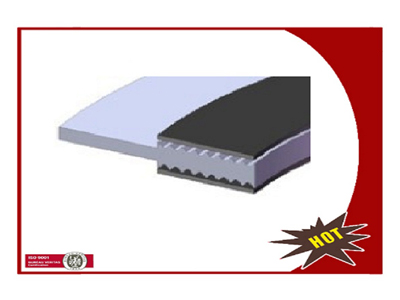

Core Engineering & Principle of Operation
The superior performance of a serrated gasket lies in its fundamental design. Under bolt load, the sharp peaks of the serrations plastically deform and embed into the microscopic valleys of the flange surface. This action achieves two primary goals:
- High Localized Sealing Stress: The contact area is limited to the tips of the serrations, concentrating the bolting force into extremely high stress points that overcome flange surface imperfections.
- Creation of a Labyrinth Path: The channels between the serrations act as a series of barriers, significantly increasing the path any potential fluid must travel to leak, effectively creating a "seal within a seal."
This design makes them particularly effective for high-pressure applications, where they resist blow-out, and for services involving thermal cycling, as the serrations can accommodate slight flange movement without losing seal integrity.
Kaxite Seals Serrated Gaskets: Technical Specifications & Material Grades
Our serrated gaskets are manufactured to exacting standards, ensuring dimensional accuracy, consistent serration geometry, and material integrity. We offer a comprehensive range to meet diverse operational requirements.
Standard Product Parameters
- Types: Concentric Serrated, Spiral Serrated (Phonograph), Double Serrated (both faces).
- Common Standards: ASME B16.20, ASME B16.5, ISO 7483, and customer-specific drawings.
- Standard Serration Geometry:
- Pitch (Distance between serration peaks): 0.8 mm, 1.5 mm, or 2.0 mm standard.
- Depth of Serration: Typically 0.4 mm to 0.8 mm, optimized for material and pressure.
- Included Angle of Groove: 90° standard, 60° available for softer materials.
- Gasket Width & Thickness: Custom manufactured per flange size and class. Standard thickness ranges from 1.5 mm to 6.0 mm.
- Inner/Outer Ring (Optional): Can be supplied with a centering inner ring and/or a protective outer guide ring for alignment and handling.
Material Selection Guide
Choosing the correct material is critical for chemical compatibility and temperature resistance. Below is a guide to our most common offerings.
| Material Grade | Common Standards | Temperature Range (Approx.) | Key Characteristics & Typical Applications |
|---|---|---|---|
| Soft Iron / Low Carbon Steel | ASTM A285, ASTM A516 | -20°C to 450°C | Excellent for high-pressure steam, water, oil, and gas. Good embedment properties. |
| Stainless Steel 304/304L | ASTM A240, UNS S30400/S30403 | -250°C to 540°C | General corrosion resistance. Widely used in chemical, petrochemical, and food processing. |
| Stainless Steel 316/316L | ASTM A240, UNS S31600/S31603 | -250°C to 540°C | Enhanced corrosion resistance, especially against chlorides and acids. Marine and harsh chemical environments. |
| Monel 400 | UNS N04400 | -150°C to 480°C | Superior resistance to seawater, hydrofluoric acid, and alkaline solutions. |
| Inconel 600 / 625 | UNS N06600 / N06625 | Up to 1095°C | Exceptional high-temperature strength and oxidation resistance. Furnaces, heat treat, aerospace. |
| Titanium | Grade 2, ASTM B265 | -250°C to 350°C | High strength-to-weight ratio, excellent corrosion resistance in chlorides and oxidizing acids. |
| Copper | C11000 | -250°C to 260°C | High thermal conductivity, malleable. Common in heat exchangers and low-temperature services. |
Frequently Asked Questions (FAQ) About Serrated Gaskets
Q: When should I choose a serrated gasket over a standard flat gasket or a spiral wound gasket?
A: Choose a serrated gasket when you need a robust, all-metal seal for high-pressure (Class 600 flange rating and above) and/or high-temperature applications. They are superior to flat gaskets in these conditions and are often preferred over spiral wound gaskets (SWGs) for extreme pressures and temperatures where the filler material in an SWG might degrade. They are also excellent for smaller flange sizes and when a compact gasket cross-section is required.
Q: What is the difference between concentric and spiral (phonograph) serrations?
A: Concentric serrations are continuous circular rings. They provide a very strong, rigid seal and are common for high-pressure static seals. Spiral serrations feature a continuous, spiral groove starting from the ID. This design offers more "give" or resilience, making it better at accommodating flange rotation, slight misalignment, and thermal cycling. The spiral design can also be easier to manufacture for larger diameters.
Q: How do I determine the correct serration pitch and depth for my application?
A: The selection depends on flange material hardness, surface finish, and required sealing pressure. A finer pitch (e.g., 0.8mm) creates more sealing lines and is used for higher pressures and harder flange materials. A coarser pitch (e.g., 2.0mm) is used for softer flange materials or lower pressures. The depth must be sufficient to allow proper embedding without causing excessive flange damage. Kaxite Seals engineers can provide specific recommendations based on your service conditions.
Q: Can serrated gaskets be reused?
A: Generally, serrated gaskets are not recommended for reuse. During initial installation, the serrations deform and embed into the flange faces in a unique pattern. Removing and reinstalling the gasket will not recreate this exact seal pattern, significantly increasing the risk of leakage. Always use a new gasket during re-assembly for guaranteed integrity.
Q: What flange surface finish is required for optimal performance with a serrated gasket?
A: A smooth, flat flange surface is crucial. A serrated gasket performs best with a flange finish between 3.2 µm Ra (125 µin Ra) and 6.3 µm Ra (250 µin Ra). A finish that is too rough may prevent proper embedding and create leak paths, while a mirror finish may not allow enough "bite." The flange faces must also be free of radial scratches, pits, or warping.
Q: How does Kaxite Seals ensure the quality and consistency of its serrated gaskets?
A: At Kaxite Seals, quality is engineered into every step. We start with certified raw materials from reputable mills. Our CNC-controlled machining and serration-cutting processes guarantee precise geometry, consistent depth, and pitch. Every batch undergoes rigorous dimensional inspection per ASME/ISO standards. Furthermore, we perform material traceability and can provide Mill Test Certificates (MTCs) for all our products, ensuring you receive a gasket that meets its specified material properties.
Q: My application involves rapid thermal cycles. Are serrated gaskets suitable?
A: Yes, serrated gaskets, particularly the spiral serrated type, are often an excellent choice for thermal cycling. The design allows for some degree of flexibility and movement as the flanges expand and contract at different rates. The multiple sealing lines maintain contact even during these shifts, preventing the gasket relaxation that can cause leaks in other gasket types after cycles.
Application Best Practices & Installation Guidelines
Proper handling and installation are critical to achieving the designed sealing performance of a serrated metal gasket.
- Flange Inspection: Before installation, thoroughly clean both male and female flange faces. Inspect for any damage, radial tool marks, or corrosion. Verify flatness and surface finish.
- Gasket Handling: Handle gaskets with care to avoid nicking or deforming the sharp serrations. Do not drop them.
- Alignment: Carefully center the gasket between the flanges. Using an inner ring or guide ring greatly aids this process.
- Bolt Lubrication & Torquing: Use a proper anti-seize lubricant on bolt threads and nut bearing surfaces. Follow a cross-pattern torque sequence in multiple incremental steps (e.g., 30%, 60%, 100% of final torque) to ensure even compression and prevent gasket distortion. Always refer to the specific torque values recommended for your flange class, size, and bolt material.
- Post-Installation: For critical systems, a post-thermal cycle re-torque is often advisable after the equipment has reached operating temperature and cooled down, as some bolt stress relaxation can occur.
