In demanding industrial environments, sealing reliability is paramount. PTFE Packing, crafted from Polytetrafluoroethylene, stands as a premier solution for controlling leaks in pumps, valves, agitators, and other rotating or reciprocating equipment. This high-performance material is engineered to withstand extreme chemical exposure, wide temperature ranges, and offers exceptional durability with minimal friction. For engineers and maintenance professionals seeking longevity and reliability in their sealing systems, PTFE packing provides an unmatched balance of performance and cost-effectiveness over its operational life.
The superiority of Kaxite Seals PTFE Packing is derived from its intrinsic material properties and advanced manufacturing techniques. PTFE is inherently chemically inert, meaning it resists attack from virtually all industrial chemicals, solvents, and acids. This makes it an ideal seal for the chemical processing, pharmaceutical, and petrochemical industries. Furthermore, its extremely low coefficient of friction reduces shaft wear and power consumption, leading to lower operational costs. Our packing maintains flexibility and sealing force across a broad temperature spectrum, ensuring consistent performance from cryogenic applications to moderate heat scenarios.
Kaxite Seals offers a comprehensive range of PTFE packing styles to meet specific application requirements. Our products are available in various forms, including braided, filament, and tape, each designed for optimal performance under different pressures, speeds, and media conditions. The following tables detail our standard product line specifications.
| Product Code | Style | Form | Primary Composition | Color | Temperature Range |
|---|---|---|---|---|---|

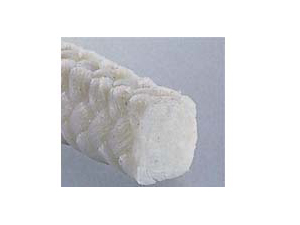

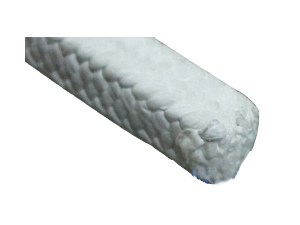

| KX-PTFE-BR | Braided | Spool / Ring Sets | 100% Virgin PTFE Yarn | White | -200°F to 450°F |
| KX-PTFE-FIL | Filament | Continuous Strand | PTFE Filament with PTFE Lubricant | White | -200°F to 450°F |
| KX-PTFE-IMP | Impregnated Braid | Spool / Ring Sets | PTFE Yarn with PTFE or Silicone Paste | White or Brown | -100°F to 500°F |
| KX-PTFE-TAPE | Tape | Roll | 100% Expanded PTFE | White | -400°F to 550°F |
| Parameter | Specification | Test Standard | Typical Application Suitability |
|---|---|---|---|
| pH Range | 0 - 14 | ASTM E70 | Strong Acids to Strong Caustics |
| Maximum Pressure (Dynamic) | Up to 1500 psi (103 bar) | ANSI/FCI 91-1 | Pump Shafts, Valve Stems |
| Maximum Pressure (Static) | Up to 2500 psi (172 bar) | ANSI/FCI 91-1 | Flange Gasketing, Static Seals |
| Shaft Speed (Maximum) | Up to 15 m/s | API 682 | Centrifugal Pumps, Mixers |
| Density | 1.2 - 2.2 g/cm³ | ASTM D792 | Varies by style and construction |
| Thermal Conductivity | 0.25 W/m·K | ASTM E1530 | Heat Transfer Equipment |
Q: What is the main difference between braided PTFE packing and filament PTFE packing?
A: Braided PTFE packing is constructed by weaving PTFE yarn into a square cross-section cord or ring. It offers excellent structural integrity, handles higher pressures, and is ideal for pumps and valves. Filament packing consists of continuous, parallel PTFE filaments bundled together. It is more flexible, conforms easily to the stuffing box, and is often used for lower-pressure applications or where easy installation is a priority.
Q: Can Kaxite Seals PTFE packing be used with potable water or in food processing?
A: Yes, absolutely. We offer specific grades of PTFE packing that are manufactured from 100% virgin PTFE materials complying with FDA regulations and USP Class VI requirements. These grades are tasteless, odorless, and non-toxic, making them perfectly safe for sealing in potable water systems, breweries, dairy processing, and other food & beverage applications.
Q: How does PTFE packing compare to traditional graphite or aramid fiber packing?
A: PTFE packing offers superior chemical resistance compared to most graphite or aramid packings, especially against strong oxidizers. It has a lower friction coefficient, reducing heat generation and shaft wear. However, graphite packing typically handles higher temperatures (up to 1200°F+ in inert atmospheres), while aramid (e.g., Kevlar) offers higher tensile strength. PTFE provides the best all-around performance for moderate-temperature, chemically aggressive services.
Q: Is lubrication required during installation of PTFE packing?
A: While PTFE has inherent lubricity, applying a compatible lubricant during installation is a recommended best practice. For our standard PTFE braid, a light coat of PTFE-based paste or compatible grease reduces initial friction, allows for smoother tightening, and helps achieve an optimal seal more quickly. Some of our pre-impregnated styles (like KX-PTFE-IMP) contain lubricants within the braid.
Q: How do I determine the correct size and number of packing rings for my equipment?
A: The size is determined by the shaft/stem diameter and the stuffing box bore diameter. The cross-section of the packing is calculated as (Bore Diameter - Shaft Diameter) / 2. The number of rings is typically 5-6 for most pumps and valves, but this can vary based on box depth. Always refer to the OEM manual. Kaxite Seals provides packing in continuous lengths for winding your own rings, or in pre-cut and pre-formed ring sets matched to your specific dimensions.
Q: What are the signs that PTFE packing needs to be replaced?
A: Common indicators include a persistent leak that cannot be controlled by gentle tightening of the gland follower, excessive heat generation at the stuffing box, a noticeable increase in power consumption or drag on the shaft, and visible physical degradation of the packing material such as hardening, cracking, or extrusion.
Q: Can PTFE packing be used in oxygen service?
A: Caution must be exercised. While virgin PTFE is chemically compatible, its use in high-pressure oxygen systems requires specialized design and cleaning to prevent ignition risks from adiabatic compression or friction. For oxygen service, it is critical to consult specific industry standards (like ASTM G88) and involve engineering expertise. Kaxite Seals can supply specially cleaned and processed PTFE packing for such applications upon request.
Choosing the optimal PTFE packing requires careful consideration of the operating conditions. For aggressive chemical services at moderate temperatures and pressures, our standard braided PTFE (KX-PTFE-BR) is often the default choice. For applications requiring maximum conformability and ease of installation, such as irregular stuffing boxes or low-speed agitators, filament style (KX-PTFE-FIL) is recommended. High-temperature static sealing or flange gasketing is best served by our expanded PTFE tape (KX-PTFE-TAPE). For dynamic applications involving hot water, mild chemicals, or where break-in lubrication is beneficial, the impregnated braid (KX-PTFE-IMP) provides enhanced performance.
At Kaxite Seals, our technical support team leverages decades of industry experience to assist you in this selection process. By providing details such as equipment type, shaft speed, media being sealed, temperature, pressure, and pH, we can recommend the most cost-effective and reliable PTFE packing solution to maximize your mean time between maintenance (MTBM) and ensure safe, leak-free operation.
