Mica Sheet stands as a cornerstone material in modern industrial engineering, offering a unique combination of exceptional thermal stability, electrical insulation, and mechanical reliability. As a natural mineral silicate, mica is processed into flexible sheets that serve as critical components across a vast array of demanding applications. For over two decades, Kaxite Seals has been at the forefront of manufacturing and supplying premium-grade mica products, establishing ourselves as a trusted partner for industries where performance, safety, and durability are non-negotiable.
At Kaxite Seals, our mica sheets are engineered to meet the most rigorous international standards. We source the finest natural mica, ensuring a product with inherent advantages over synthetic alternatives: superior dielectric strength, excellent thermal endurance, and remarkable chemical inertness. Whether it's insulating a high-voltage busbar, acting as a thermal barrier in a furnace, or providing a durable gasket in a chemical pump, our mica sheets deliver consistent, reliable performance.
### **Core Product Specifications and Parameters**
Understanding the technical specifications is crucial for selecting the right mica sheet for your application. Below are the detailed parameters that define Kaxite Seals' mica sheet products.

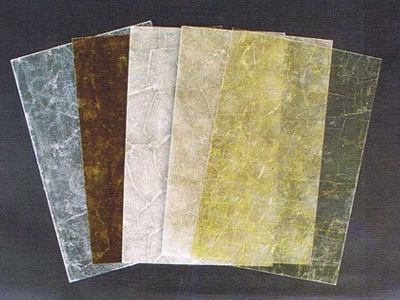

#### **1. Material Types & Composition**
Our portfolio includes several types to suit specific needs:
* **Muscovite Mica Sheet:** Known for its outstanding electrical properties and high thermal stability up to 600°C. It is the most commonly used type for electrical insulation.
* **Phlogopite Mica Sheet:** Offers slightly higher thermal resistance, typically up to 800°C, and is often preferred in high-temperature heating applications. It has a warmer, amber-like color compared to muscovite's clear/silvery appearance.

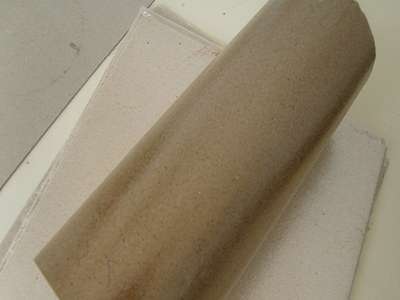

* **Silicone Bonded Mica Sheet:** Muscovite or phlogopite mica paper bonded with a high-temperature silicone resin. This enhances flexibility, moisture resistance, and formability for complex shapes.
* **Epoxy Bonded Mica Sheet:** Mica paper bonded with epoxy resin, providing excellent mechanical strength, dimensional stability, and arc resistance for rigid insulating components.
#### **2. Key Physical & Electrical Properties (Typical Values)**
The following table summarizes the critical performance metrics of standard Kaxite Seals mica sheets.
| Property | Muscovite Sheet | Phlogopite Sheet | Silicone Bonded | Epoxy Bonded | Test Standard |
| :--- | :--- | :--- | :--- | :--- | :--- |
| **Service Temperature** | Up to 600°C | Up to 800°C | Up to 600°C | Up to 200°C | - |
| **Dielectric Strength** | 15-25 kV/mm | 15-22 kV/mm | 15-25 kV/mm | 20-30 kV/mm | ASTM D149 |
| **Volume Resistivity** | 10^13 - 10^15 Ω·cm | 10^12 - 10^14 Ω·cm | 10^12 - 10^14 Ω·cm | 10^13 - 10^15 Ω·cm | ASTM D257 |
| **Density** | 1.8 - 2.2 g/cm³ | 1.9 - 2.3 g/cm³ | 1.7 - 2.0 g/cm³ | 1.8 - 2.2 g/cm³ | ASTM D792 |
| **Thermal Conductivity** | 0.3 - 0.5 W/m·K | 0.4 - 0.6 W/m·K | 0.35 - 0.5 W/m·K | 0.3 - 0.45 W/m·K | ASTM C518 |
| **Thickness Range** | 0.05mm - 3.0mm | 0.05mm - 3.0mm | 0.1mm - 5.0mm | 0.2mm - 50mm | - |
| **Flexibility** | Good | Good | Excellent | Fair to Good (rigid) | - |
#### **3. Standard Size & Form Availability**
Kaxite Seals mica sheets are available in various forms to facilitate easy integration into your manufacturing process.
* **Sheet Stock:** Standard panels and rolls.
* **Custom Blanks:** Pre-cut to your specified dimensions and shapes (circles, rectangles, complex geometries).
* **Tapes and Laminates:** Combined with other materials like glass cloth or polyester film for enhanced properties.
**Available Standard Sheet Sizes:**
* 500mm x 500mm
* 1000mm x 500mm
* 1000mm x 1000mm
* Rolls: 500mm/1000mm wide x up to 50 meters long.
#### **4. Mechanical and Chemical Resistance Properties**
* **Tensile Strength:** Ranges from 80 to 150 MPa, depending on grade and bonding agent.
* **Compressibility:** Excellent, allowing for effective sealing in gasket applications.
* **Chemical Resistance:** Highly resistant to most acids, alkalis, solvents, oils, and water. It does not react with or contaminate process media.
* **Non-Combustible:** Mica is inherently fire-resistant and will not combust, contributing to system safety.
### **Frequently Asked Questions (FAQ) About Mica Sheets**
**Q: What are the primary advantages of using a natural mica sheet from Kaxite Seals over synthetic mica or other insulating materials?**
A: Natural mica sheets from Kaxite Seals offer a unique, balanced set of properties that are difficult to match synthetically. They provide exceptional dielectric strength and arcing resistance, can withstand extreme temperatures without degrading, and are completely inorganic—meaning they do not outgas, smoke, or burn. Compared to plastics or ceramics, mica sheets are more flexible, easier to machine, and offer better thermal shock resistance.
**Q: For a high-temperature furnace application (around 750°C), which type of mica sheet should I choose?**
A: For continuous operation at 750°C, Phlogopite Mica Sheet is the recommended choice from Kaxite Seals. Its higher temperature tolerance (up to 800°C) ensures long-term stability and prevents delamination or loss of insulating properties that might occur with other types at that temperature range. It serves as an excellent window, separator, or internal insulation in furnaces, kilns, and heaters.
**Q: How do I cut and fabricate mica sheets to fit my specific component shape?**
A: Kaxite Seals mica sheets can be easily machined using standard workshop tools. For thin sheets (below 1mm), sharp scissors, utility knives, or die-cutting are effective. For thicker sheets, laser cutting, waterjet cutting, or CNC machining provide precise, clean edges without delamination. We also offer a custom fabrication service where we supply ready-to-install components cut precisely to your drawings.
**Q: Can Kaxite Seals mica sheets be used as gaskets in chemical processing equipment?**
A: Absolutely. This is one of their key applications. Mica's excellent chemical inertness makes it ideal for sealing flanges, manways, and sight glasses in pumps, reactors, and pipelines handling corrosive acids, alkalis, and solvents. It maintains a reliable seal under high temperature and pressure, unlike many polymer-based gaskets that would degrade.
**Q: What is the difference between a built-up mica sheet and a mica paper-based sheet?**
A: Built-up (or splitted) mica sheets are made from layered natural mica flakes, offering the highest purity and electrical performance. Mica paper-based sheets are made from reconstituted mica pulp, bonded with a resin (silicone, epoxy). Paper-based sheets from Kaxite Seals offer more uniform thickness, better flexibility, and can be produced in larger, continuous sheets, often at a more economical price point, while still retaining excellent core properties.
**Q: How should I store and handle mica sheets to ensure their quality is preserved?**
A: Store mica sheets in a cool, dry environment away from direct moisture. While mica itself is moisture-resistant, prolonged exposure to humidity can affect some bonding resins. Handle sheets with care to avoid excessive bending or kinking, which could cause cracking in thicker, rigid grades. Use clean, dry tools during fabrication to prevent contamination.
**Q: Does Kaxite Seals offer mica sheets with custom properties, like specific thickness tolerances or composite materials?**
A: Yes, customization is a core strength of Kaxite Seals. We regularly work with clients to develop tailored solutions. This includes providing sheets with tighter thickness tolerances, laminating mica with materials like PTFE film or fiberglass for specific interface needs, or impregnating with special resins for enhanced arc-quenching or thermal conductivity. Contact our technical team with your requirements.
**Q: Are your mica sheets compliant with international industry and safety standards?**
A: Yes. Kaxite Seals mica sheets are manufactured to comply with relevant international standards such as ASTM, IEC, NEMA, and RoHS. We can provide material certifications and test reports upon request to support your quality assurance and regulatory documentation processes.
