PTFE, or Polytetrafluoroethylene, represents the gold standard in industrial sealing materials, renowned for its unparalleled chemical inertness and exceptional performance across extreme temperatures. PTFE Gaskets are critical components engineered to create leak-proof seals between two mating surfaces, such as flanges in piping systems, reactors, or vessels. They function by flowing into the microscopic imperfections on flange faces, thereby preventing the escape of fluids or gases and maintaining system integrity, pressure, and safety. The unique molecular structure of PTFE, a carbon chain fully shielded by fluorine atoms, is the source of its remarkable properties, making it the material of choice for the most demanding sealing challenges. At Kaxite Seals, we specialize in transforming this advanced polymer into precision sealing solutions that ensure reliability, longevity, and operational efficiency for industries worldwide.
The superiority of PTFE as a gasketing material stems from a combination of physical and chemical characteristics unmatched by most other polymers or elastomers.
By leveraging these inherent advantages, Kaxite Seals manufactures gaskets that deliver exceptional sealing performance, reduce maintenance downtime, and extend service life in critical applications.
Our product line is engineered to meet precise industrial standards. Below are the detailed specifications for our standard PTFE Gasket offerings.
| Grade/Form | Description | Key Characteristics | Typical Applications |
|---|---|---|---|

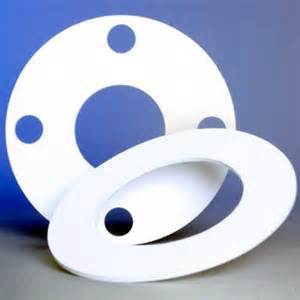

| Virgin PTFE | 100% pure, unfilled Polytetrafluoroethylene. | Maximum chemical resistance, excellent electrical properties, FDA compliant options. | Ultra-pure chemical service, food & pharmaceutical, electrical insulation. |
| Glass Filled PTFE | PTFE compounded with glass microspheres or fibers. | Improved compressive strength, reduced creep (cold flow), better dimensional stability. | Flange gaskets for high-pressure services, applications requiring high load bearing. |
| Carbon Filled PTFE | PTFE compounded with carbon or graphite powder. | Enhanced thermal conductivity, improved wear resistance, lower deformation under load. | Heat exchanger gaskets, applications involving thermal cycling, wear pads. |
| Stainless Steel Insert PTFE-Enveloped Gaskets | A corrosion-resistant metal core (e.g., 304/316 SS) fully encapsulated in a PTFE sheath. | High mechanical strength, excellent torque retention, full PTFE corrosion barrier. | Aggressive chemical services, high bolt load applications, heat exchangers. |

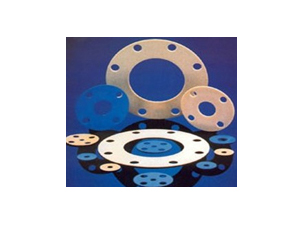

| Expanded PTFE (ePTFE) | A highly porous, fibrous form of PTFE created by expansion. | Highly conformable, excellent seal-ability on rough surfaces, good compressibility. | Jacketing for spiral wound gaskets, sheet gasketing for uneven flanges, valve stem packing. |
| Property | Test Standard | Value / Rating |
|---|---|---|
| Density | ASTM D792 | 2.14 - 2.20 g/cm³ |
| Tensile Strength | ASTM D638 | 25 - 35 MPa |
| Elongation at Break | ASTM D638 | 300 - 500% |
| Compressive Strength | ASTM D695 | 12 MPa |
| Continuous Service Temperature | - | -200°C to +260°C (-328°F to +500°F) |
| Thermal Conductivity | ASTM C177 | 0.25 W/m·K |
| Coefficient of Friction | ASTM D1894 | 0.05 - 0.10 (static, against steel) |
| Flammability | UL 94 | V-0 |
| Nominal Pipe Size (NPS) | Inside Diameter (ID) | Outside Diameter (OD) | Thickness |
|---|---|---|---|
| 1/2" | 0.84 in (21.3 mm) | 1.75 in (44.5 mm) | 1/16 in (1.6 mm) |
| 2" | 2.07 in (52.5 mm) | 4.25 in (108.0 mm) | 1/16 in (1.6 mm) |
| 6" | 6.19 in (157.2 mm) | 9.50 in (241.3 mm) | 1/8 in (3.2 mm) |
| 12" | 12.25 in (311.2 mm) | 17.00 in (431.8 mm) | 1/8 in (3.2 mm) |
| Custom Sizes | Kaxite Seals offers full custom manufacturing. We can produce any ID, OD, thickness, and shape (round, oval, square, irregular) to match your blueprints or samples. | ||
What is the main difference between Virgin PTFE and filled PTFE gaskets?
Virgin PTFE offers the highest level of chemical purity and resistance but is susceptible to "creep" or cold flow under sustained pressure. Filled PTFE grades (e.g., with glass, carbon, bronze) incorporate materials that significantly improve mechanical properties like creep resistance, compressive strength, and wear resistance, making them suitable for higher load applications, albeit with a slight trade-off in absolute chemical inertness depending on the filler.
How do I select the right PTFE gasket for my chemical application?
Selection requires reviewing the chemical compatibility of PTFE with the specific media, concentration, and temperature. While PTFE is resistant to nearly all chemicals, exceptions include molten alkali metals and certain fluorine compounds at high temperatures. At Kaxite Seals, our engineering team can provide detailed chemical resistance charts and recommend the optimal grade—be it virgin for ultra-pure service or a filled grade for added mechanical stability in aggressive environments.
What are the torque specifications for installing PTFE gaskets?
Proper installation torque is critical. PTFE gaskets generally require lower bolt torque compared to fibrous gaskets due to their lower coefficient of friction and different sealing mechanism. A common guideline is to use the manufacturer's recommended torque for a specific flange class and size. For Kaxite Seals products, we provide detailed installation instructions and torque tables with every order to ensure a reliable, leak-free seal without damaging the gasket or flange.
Can PTFE gaskets be used for high-pressure applications?
Yes, but the design must be appropriate. Virgin PTFE has limitations in high-pressure services due to cold flow. For high-pressure applications, reinforced designs like stainless steel insert PTFE-enveloped gaskets or high-performance filled PTFE grades (e.g., 25% glass filled) are recommended. These designs provide the internal strength to withstand high bolt loads and system pressures while maintaining the corrosion resistance of the PTFE sealing surface.
Are PTFE gaskets reusable?
PTFE gaskets are generally not designed to be reusable. Once compressed during installation, the material undergoes deformation to create the seal. Removing and re-installing a used gasket typically will not provide the same level of sealing integrity and can lead to leaks. For applications requiring frequent disassembly, a different sealing solution or a gasket design intended for reuse (like certain metal-core designs) should be considered.
How does temperature affect PTFE gasket performance?
PTFE performs superbly across a vast temperature range. However, it's important to consider thermal expansion and the potential for stress relaxation at elevated temperatures. At very high temperatures (approaching 260°C/500°F), creep resistance becomes more critical, often necessitating a filled grade. For cryogenic services, PTFE remains flexible and does not become brittle, making it an excellent choice. Kaxite Seals can advise on the best material formulation for your specific temperature cycling conditions.
What standards do Kaxite Seals PTFE gaskets conform to?
Our gaskets are manufactured to meet or exceed various international standards, including ASME B16.20 (Metallic Gaskets for Pipe Flanges) and B16.21 (Nonmetallic Flat Gaskets), API 601, and DIN standards. Material certifications (e.g., for FDA, USP Class VI, or specific chemical compositions) are available upon request to ensure compliance with your industry and regulatory requirements.
The versatility of PTFE makes it indispensable in sectors where reliability under harsh conditions is non-negotiable.
Selecting Kaxite Seals means partnering with a specialist dedicated to precision, quality, and technical expertise in high-performance sealing.
