In the demanding world of industrial sealing, few materials offer the unique combination of properties that copper does. Copper gaskets are a cornerstone for applications where reliability under extreme conditions is non-negotiable. At Kaxite Seals, we specialize in engineering high-performance copper gaskets that meet the rigorous standards of modern industry. Known for their excellent thermal conductivity, malleability, and corrosion resistance, these gaskets are indispensable in creating leak-free seals in high-temperature and high-pressure environments. Their ability to conform to flange surfaces ensures a tight, secure seal, preventing the escape of fluids or gases and protecting critical system integrity.
The selection of a gasket material is a critical decision. Copper offers distinct benefits:
Kaxite Seals manufactures copper gaskets to exacting specifications. Our product range is defined by several critical parameters:
We comply with international standards including ASTM B152, ASTM B370, DIN 1787, and BS 2875.
| Parameter | Typical Specification Range | Notes / Kaxite Standard |
|---|---|---|
| Thickness | 0.2 mm to 3.0 mm (0.008" to 0.125") | Custom thicknesses available upon request. Standard stock at 0.5mm, 0.8mm, 1.0mm, 1.5mm. |
| Hardness (Temper) | Soft (O60), Half-Hard (H00), Hard (H04) | Soft temper for maximum conformability; Hard temper for high bolt load and reusability. |
| Density | 8.89 - 8.94 g/cm³ | Material grade dependent. |
| Melting Point | 1083°C (1981°F) | Ensures stability in high-heat scenarios. |
| Tensile Strength | 220 - 360 MPa (Soft to Hard) | Provides necessary strength for sealing pressure. |
| Thermal Conductivity | 391 W/m·K (at 20°C) | Key property for heat dissipation. |
| Max Continuous Service Temp | 250°C - 400°C (482°F - 752°F) | Depends on environment and alloy. Consult Kaxite engineering. |
| Surface Finish | Plain, Tin-Plated, Nickel-Plated | Plating enhances corrosion resistance and aids in sealing. |
Kaxite Seals produces a variety of profiles to suit specific sealing needs:
| Industry | Typical Applications | Kaxite Solution Focus |
|---|---|---|

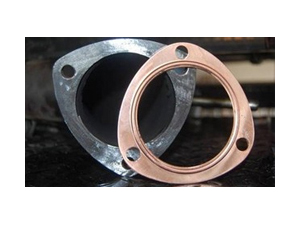

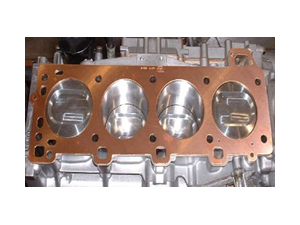

| Automotive & Aerospace | Cylinder head gaskets (niche/racing), exhaust manifold gaskets, turbocharger seals, rocket engine components. | High-temp performance, custom OEM designs, lightweight solutions. |
| Oil, Gas & Petrochemical | Pipeline flanges, wellhead equipment, heat exchangers, compressor seals, valve seals. | High-pressure RTJ gaskets, corrosion-resistant plating, API-standard products. |
| Power Generation | Steam turbine flanges, generator cooling systems, transformer bushings, boiler access doors. | Exceptional thermal cycling resistance, high conductivity for heat dissipation. |
| Industrial Machinery | Hydraulic systems, pneumatic fittings, pump housings, industrial oven doors. | Reliable sealing under vibration, customizable shapes and sizes. |
Q: When should I choose a copper gasket over a graphite or rubber gasket?
A: Choose a copper gasket for high-temperature (above 300°C/570°F) and high-pressure applications where metallic resilience is required. They are superior to rubber (which degrades at high temps) and graphite (which can oxidize rapidly in steam or oxidizing atmospheres above 400°C) in these conditions. Copper is also chosen for its electrical conductivity, non-magnetic properties, and when reusability is a key factor. For lower temperature, lower pressure, or highly corrosive chemical services, other materials may be more appropriate.
Q: Can copper gaskets be reused?
A: Yes, one of the advantages of copper gaskets is their potential for reuse, especially those in harder tempers (like H04). However, this depends heavily on the application conditions. After disassembly, the gasket must be carefully inspected for signs of excessive compression(set), cracks, corrosion, or significant deformation. Light surface oxidation can often be cleaned. Kaxite Seals recommends consulting our engineers for critical applications to determine reusability, and we generally advise having a spare gasket on hand.
Q: What is the purpose of plating (tin, nickel) on copper gaskets?
A: Plating serves multiple purposes. Tin plating is common and provides a softer surface that enhances conformability and initial sealability. It also offers a protective layer against galvanic corrosion when connecting copper to dissimilar metals like steel. Nickel plating provides a harder, more durable surface with excellent resistance to oxidation and corrosion at higher temperatures, extending the gasket's service life in harsh environments.
Q: How do I determine the correct hardness (temper) for my application?
A: The temper selection balances conformability and strength. Soft Temper (O60): Use for flanges with surface imperfections, lower bolt loads, or when maximum conformability is needed. It seals easily but may not be reusable. Hard Temper (H04): Use for high bolt load applications, high internal pressure, or where reusability is desired. It requires a smoother flange finish and higher installation torque. Half-Hard (H00): A compromise between the two. Kaxite Seals' technical team can help you select the optimal temper based on your flange condition, pressure, temperature, and assembly process.
Q: What are the torque specifications for installing a copper gasket?
A: There is no universal torque value; it depends on gasket dimensions, hardness, flange material, bolt grade, and the presence of plating. The goal is to achieve a specific sealing stress (typically in MPa or psi) on the gasket face. Under-torquing can cause leaks; over-torquing can crush the gasket or damage flanges. We recommend following the original equipment manufacturer's (OEM) specifications. For custom applications, Kaxite Seals can provide recommended bolt load or torque guidelines based on our gasket design calculations to ensure a reliable, leak-free seal.
Q: Are Kaxite copper gaskets suitable for oxygen service?
A: Standard copper gaskets are generally not recommended for high-pressure oxygen or other strong oxidizing agent service due to the combustion risk from friction or adiabatic compression. Special cleaning, passivation, and material validation procedures are required for such services. If your application involves oxygen, please contact Kaxite Seals directly with your detailed service conditions so we can advise on a specially prepared and certified solution that meets the necessary safety standards.
Choosing Kaxite Seals means investing in precision, reliability, and expertise. Our commitment extends beyond manufacturing. We provide comprehensive technical support, from material selection and design consultation to installation guidance. Our modern manufacturing facility utilizes advanced laser cutting, CNC punching, and precision stamping to produce gaskets with tight tolerances and flawless consistency. Every batch of copper material is traceable and certified, ensuring you receive a product that performs as specified, every time. We understand that a gasket is a small component with a massive responsibility—preventing leaks, ensuring safety, and maintaining operational efficiency. Trust Kaxite Seals to deliver the sealing solution that your critical application demands.
