For industries worldwide, managing fluid and gas containment under extreme pressures and temperatures is a critical challenge. This is where Braided Packing, also known as mechanical packing or gland packing, proves its indispensable value. As a fundamental sealing solution, it is engineered to prevent leakage around rotating or reciprocating shafts in pumps, valves, mixers, and other industrial equipment. At Kaxite Seals, we have dedicated decades to refining the science of braided packing, developing products that offer unparalleled reliability, durability, and performance across a vast spectrum of demanding applications.
Modern braided packing is far more than simple rope. It is a sophisticated component, precisely constructed from various fibers, lubricants, and sometimes metal wires, all braided together into a cohesive seal. The braiding process itself is an art, determining the packing's flexibility, density, and ability to conform to the shaft and stuffing box. The right packing selection minimizes friction, reduces maintenance downtime, extends equipment life, and, most importantly, ensures operational safety and environmental compliance by preventing hazardous leaks.
Choosing Kaxite Seals for your braided packing needs means investing in superior engineering and material science. Our products stand out in the market for several compelling reasons:
To make an informed selection, understanding the technical parameters of braided packing is crucial. Below is a detailed breakdown of the key characteristics that define Kaxite Seals braided packing products.
| Material Type | Core Composition | Temperature Range (°C) | pH Range | Primary Applications | Key Advantage |
|---|---|---|---|---|---|
| PTFE (Teflon) Braided | 100% PTFE filaments, sometimes with lubricant impregnation. | -260 to +290 | 0-14 | Chemical processing, food & beverage, pharmaceuticals, ultra-pure media. | Extreme chemical inertness, non-contaminating, low friction. |

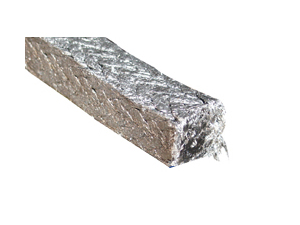

| Flexible Graphite | Intercalated and expanded graphite foil, reinforced with Inconel wire. | -200 to +650 (inert atmos.) / +450 (oxidizing) | 0-14 (excluding strong oxidizers) | High-temperature valves, boiler feed pumps, heat transfer fluids, flue gas scrubbers. | Excellent thermal conductivity, self-lubricating, resilient under thermal cycling. |
| Aramid Fiber (e.g., Kevlar®) | Aramid fibers braided with PTFE or synthetic lubricants. | -200 to +300 | 2-12 | Pump packing for water, slurries, mild chemicals, and steam services. | High tensile strength, excellent abrasion resistance, non-asbestos substitute. |
| Carbon Fiber | High-strength carbon fibers, often combined with PTFE or graphite. | -200 to +350 | 0-14 | Abrasive slurry services, hot oil, aggressive chemical environments. | Superior strength-to-weight ratio, excellent thermal stability, low creep. |
| Glass Fiber | E-glass or S-glass fibers with PTFE or graphite impregnation. | -60 to +260 | 2-12 (excluding HF & strong alkalis) | Hot water, mild acids, salt solutions, and general industrial services. | Cost-effective, good chemical resistance to many acids, good insulation. |
| Parameter | Specification Range (Kaxite Seals) | Measurement Standard | Importance for Selection |
|---|---|---|---|
| Packing Density | 0.9 g/cm³ to 2.1 g/cm³ | ASTM D3800 | Higher density offers better sealing under high pressure but may increase friction. |
| Cross-Section (Size) | 3mm x 3mm to 25mm x 25mm (Standard) | Custom sizes available | Must match the gland/stuffing box dimensions precisely for an effective seal. |
| Tensile Strength | 50 MPa to 300+ MPa | ASTM D2256 | Indicates resistance to breaking during installation and operation, crucial for high-pressure applications. |
| Coefficient of Friction | 0.05 to 0.15 (Dynamic, against steel) | Custom Test Methods | Lower friction reduces wear on the shaft and packing, lowering heat generation and power loss. |
| Thermal Conductivity | 5 to 150 W/m·K (Varies greatly by material) | ASTM E1461 | High conductivity helps dissipate frictional heat away from the shaft interface, critical for high-speed equipment. |
| Pressure Rating | Up to 250 Bar (3600 PSI) | Application & Material Dependent | Must exceed the maximum operating pressure of the system to prevent extrusion and failure. |
Q: What is the primary function of braided packing?
A: The primary function of braided packing is to create a dynamic seal between a moving shaft (rotating or reciprocating) and a stationary housing (the stuffing box). It controls and minimizes the leakage of process fluids or gases to the environment, ensuring operational safety, efficiency, and environmental protection. It acts as a consumable barrier that can be adjusted and maintained.
Q: How do I select the right braided packing material for my application?
A: Selection is based on a careful assessment of your operating conditions. The key factors are: 1) Media: Identify the chemical composition, pH, and abrasiveness of the fluid or gas. 2) Temperature: Determine the continuous and peak temperatures. 3) Pressure: Know the system operating pressure and any pressure spikes. 4) Shaft Speed: Consider surface speed (RPM x shaft diameter). 5) Equipment Type: Pump, valve, mixer, etc. Cross-reference these with material compatibility charts, like those provided by Kaxite Seals, to narrow down the suitable options.
Q: What is the correct procedure for installing braided packing?
A: Proper installation is critical for performance and longevity. The general procedure is: 1) Clean the stuffing box and shaft thoroughly. 2) Inspect the shaft for wear or scoring. 3) Cut packing rings to size using a mandrel or by wrapping around the shaft—cuts should be clean and at a 45-degree angle. 4) Stagger the joints of each ring by 90 degrees as you install them into the box. 5) Use a split bushing or proper tool to tamp each ring down firmly and evenly. 6) Adjust the gland follower nuts finger-tight initially, then follow the equipment manufacturer's or Kaxite Seals' recommended run-in procedure, which involves gradual tightening during initial operation.
Q: Why does braided packing sometimes leak, and is a small amount of leakage normal?
A> Some leakage, often a few drops per minute, is typically designed into traditional packing systems to provide lubrication and cooling at the shaft interface. However, excessive leakage indicates a problem. Common causes include: improper material selection for the media, incorrect installation (e.g., over-tightening, under-tightening, or staggered joints aligned), worn or scored shaft, unsuitable packing size, thermal degradation of the packing material, or normal wear requiring adjustment or replacement.
Q: How often should braided packing be replaced or adjusted?
A: There is no universal timeframe; service life depends entirely on the operating conditions—pressure, temperature, media, shaft speed, and installation quality. A well-selected and properly installed Kaxite Seals packing can last for months or even years in moderate service. The key is regular monitoring. When leakage increases beyond the acceptable limit and cannot be controlled by simple gland adjustment (usually a quarter-turn of the nuts), it is time to repack. Preventative maintenance schedules should be based on historical performance data for your specific equipment.
Q: What makes Kaxite Seals braided packing different from other brands on the market?
A: Kaxite Seals differentiates itself through a commitment to precision engineering and quality control. Our packings are not just commodity items. We focus on advanced braid patterns for consistent density, source and test raw materials rigorously, and offer extensive technical support for application engineering. Furthermore, our product range includes specialized formulas for extreme services, providing solutions where standard packings fail. We view our packing as a critical component of your system's performance, not just a spare part.
Q: Can braided packing be used for high-speed pump applications?
A: Yes, but material selection and design become extremely critical. For high-speed applications, choosing a material with excellent thermal conductivity (like flexible graphite or carbon fiber) and inherent lubricity (PTFE-impregnated) is essential to manage frictional heat. The packing may also require external flushing or cooling. Kaxite Seals offers several high-performance braided packing styles specifically engineered for high surface speeds, focusing on heat dissipation and minimal shaft wear.
The versatility of braided packing makes it a cornerstone of industrial sealing. Kaxite Seals products are trusted in countless sectors to ensure safety and reliability.
