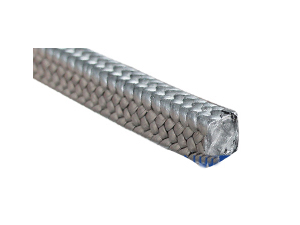

Graphite PTFE Packing is a high-performance sealing solution designed to withstand extreme conditions where conventional packings fall short. It combines the self-lubricating properties and chemical inertness of PTFE (Polytetrafluoroethylene) with the superior thermal conductivity and stability of pure, flexible graphite. This synergy creates a robust sealing material capable of handling aggressive media, high temperatures, and demanding dynamic applications. At Kaxite Seals, we engineer our Graphite PTFE Packing to deliver unmatched reliability, extended service life, and reduced maintenance downtime for critical industrial processes.
The core of this packing's performance lies in its unique construction. Typically, it is manufactured by impregnating or combining expanded graphite foil with PTFE, either as a dispersion or in fiber form. This process yields a material that is not only exceptionally durable but also highly adaptable, conforming well to gland surfaces to create an effective seal from the initial installation.
### Key Advantages of Graphite PTFE Packing
* **Exceptional Temperature Range:** Performs reliably from cryogenic temperatures up to +550°F (+288°C) in oxidizing atmospheres and even higher in inert or reducing environments.
* **Universal Chemical Compatibility:** Resistant to virtually all aggressive chemicals, solvents, acids, and alkalis, thanks to the inert nature of both PTFE and graphite.
* **Superior Thermal Conductivity:** The graphite component efficiently dissipates heat away from the shaft, reducing the risk of thermal damage to both the packing and the equipment.
* **Excellent Self-Lubrication:** Low coefficient of friction minimizes shaft or stem wear and reduces breakout and running torque, leading to smoother operation.
* **Long Service Life:** High resistance to creep, relaxation, and chemical attack ensures a long-lasting seal, lowering total cost of ownership.
* **Conformance and Sealability:** The flexible, pliable nature allows it to conform to surface imperfections, ensuring a tight seal even on slightly worn equipment.
### Target Applications
This advanced packing is the seal of choice for numerous challenging applications across industries:
* Chemical and Petrochemical Processing: Pumps and valves handling acids, caustics, and solvents.
* Pharmaceutical and Food Processing: Where purity and non-contamination are critical.
* Power Generation: Sealing in boiler feed pumps, condensate systems, and other high-temperature services.
* Pulp and Paper Industry: Agitators, pumps, and valves in bleaching and chemical recovery stages.
* General Industrial: Agitators, mixers, and rotary equipment in demanding environments.
###
Detailed Product Parameters & Specifications
To ensure you select the correct Kaxite Seals Graphite PTFE Packing for your application, refer to the following detailed technical data presented in both list and table formats.
**Primary Material Composition:**
* **Base Material:** Premium, highly expanded flexible graphite.
* **Impregnation/Binder:** High-purity PTFE (Polytetrafluoroethylene) dispersion or fibrillated PTFE fiber.
* **Reinforcement:** May include Inconel wire or other corrosion-resistant metal foils for added structural integrity in high-pressure applications (available in specific grades).
**Physical & Mechanical Properties:**
* **Temperature Range:** -450°F to +550°F (-268°C to +288°C) in air; up to +1200°F (+650°C) in non-oxidizing atmospheres.
* **pH Range:** 0 – 14 (Resistant to virtually all chemicals).
* **Specific Gravity:** 1.6 – 2.2 g/cm³ (Varies by grade and density).
* **Thermal Conductivity:** Excellent, typically >10 W/(m·K) in the plane of the sheet.
* **Coefficient of Friction:** Low, typically 0.04 – 0.10 (dynamic).
* **Compressibility:** 25% – 45%.
* **Recovery:** 10% – 25%.
**Standard Product Grades & Specifications Table:**
The table below outlines common grades offered by Kaxite Seals. Custom formulations are available to meet specific requirements.
| Grade Code | Description | Density (g/cm³) | Max. Pressure (psi) | Max. Speed (ft/min) | Standard Size (Inch) | Key Features |
| :--- | :--- | :--- | :--- | :--- | :--- | :--- |
| **KX-GPT-1** | Pure Graphite/PTFE Blend | 1.7 - 1.9 | 1500 | 2500 | 1/4", 3/8", 1/2", 5/8", 3/4", 1" | General purpose, excellent chemical resistance, for pumps and valves. |
| **KX-GPT-2** | Graphite/PTFE with Inconel Foil | 2.0 - 2.2 | 2200 | 2000 | 1/4", 3/8", 1/2", 5/8" | Enhanced for high-pressure services, improved extrusion resistance. |
| **KX-GPT-3** | High-Purity Pharma Grade | 1.6 - 1.8 | 1200 | 2000 | 1/4", 3/8", 1/2" | Certified for purity, low leachables, ideal for food, pharma, and ultra-pure chemical processes. |
| **KX-GPT-4** | Die-Formed Rings | 1.8 - 2.0 | 1800 | 3000 | Custom IDs/ODs/Width | Pre-formed split rings for easy installation, consistent density, for rotary equipment. |
**Available Forms:**
* **Spool Packing:** The most common form, supplied on spools in continuous lengths for cutting and spiral winding into the stuffing box.
* **Die-Formed Rings:** Pre-cut, pre-formed rings with a 45-degree scarf cut or butt joint for precise, quick installation without cutting or measuring on-site.
* **Coil Packing:** Large-diameter coils for high-volume users.
* **Sheet Stock:** Available for custom gasket fabrication.
### Installation Guidelines for Optimal Performance
Proper installation is critical to achieving the full potential of Graphite PTFE Packing. Follow these key steps:
1. **Clean the Stuffing Box:** Remove old packing completely. Clean the shaft/stem and box bore thoroughly to remove any debris or old sealing material.
2. **Inspect Equipment:** Check the shaft/stem for scoring or wear. Excessive wear will compromise seal life.
3. **Cut Packing Correctly:** For spool packing, wrap the material around a mandrel of the same diameter as the shaft/stem. Cut at a precise 45-degree angle. For die-formed rings, no cutting is needed.
4. **Stagger Joints:** Install each ring individually, ensuring the joints are staggered by at least 90 degrees around the circumference.
5. **Tighten Gland Evenly:** After installing all rings, tighten the gland nuts finger-tight. Start the equipment and gradually tighten the gland in small increments (typically 1/6th of a turn) during warm-up until a slight leakage is observed (usually 1-2 drops per minute). This allows the packing to break in and transfer heat.
6. **Re-tighten After Run-in:** After 24 hours of operation, re-check and adjust the gland follower if necessary.
### Frequently Asked Questions (FAQ) About Graphite PTFE Packing
**Q: What makes Graphite PTFE Packing superior to traditional braided packings like aramid or flax?**
**A:** Traditional braided packings often rely on lubricants that can wash out or degrade. Graphite PTFE Packing is inherently self-lubricating and chemically inert. It offers a much wider temperature range, superior chemical resistance, better thermal conductivity to manage heat, and generally provides a longer service life with less maintenance in aggressive service conditions.
**Q: Is this packing suitable for high-speed rotary pump applications?**
**A:** Yes, it is excellent for a wide range of rotary applications. Its low friction and good thermal properties help manage heat generation at the seal face. For very high-speed applications (exceeding 2500 ft/min), ensure proper equipment condition, cooling, and select the appropriate grade (like KX-GPT-1 or KX-GPT-4). Consultation with a Kaxite Seals engineer is recommended for extreme conditions.
**Q: How does it perform with abrasive slurries?**
**A:** While highly chemically resistant, the pure graphite/PTFE blend can be susceptible to abrasion from hard particulate matter. For abrasive services, Kaxite Seals often recommends a different packing type, such as a PTFE packing with inorganic lubricants or a specialized abrasion-resistant grade. Providing details of your specific media is crucial for the correct product recommendation.
**Q: Can I use Graphite PTFE Packing on mixers or agitators?**
**A:** Absolutely. It is a top choice for agitator seals due to its ability to handle off-center shaft movement (runout), its chemical resistance to process fluids, and its low maintenance requirements. Die-formed rings (KX-GPT-4) are particularly convenient for large agitator shafts.
**Q: What is the shelf life of this packing material?**
**A:** When stored in its original packaging in a cool, dry place away from direct sunlight and contaminants, Kaxite Seals Graphite PTFE Packing has an essentially indefinite shelf life. The materials (graphite and PTFE) are not prone to degradation over time.
**Q: How do I determine the correct size and number of packing rings needed?**
**A:** You need the shaft/stem diameter and the stuffing box bore diameter. The packing cross-section is calculated as: (Bore Diameter – Shaft Diameter) / 2. The number of rings is typically the box depth divided by the packing cross-section. Our technical datasheets and website calculators can assist, or you can contact Kaxite Seals directly with your equipment dimensions.
**Q: Is leakage adjustment different for this packing compared to others?**
**A:** Yes, the break-in procedure is important. Unlike some packings that require immediate tight sealing, Graphite PTFE Packing benefits from a controlled break-in with slight initial leakage (a few drops per minute) to allow for heat dissipation and proper seating. Overtightening during initial startup can generate excessive heat and cause premature failure.
**Q: Does Kaxite Seals offer custom formulations of this packing?**
**A:** Yes. As a specialist manufacturer, Kaxite Seals provides extensive custom engineering services. We can adjust density, incorporate different reinforcement materials (e.g., specific metal foils), modify PTFE content, or create special sizes and forms to meet unique pressure, temperature, speed, or chemical exposure requirements.
