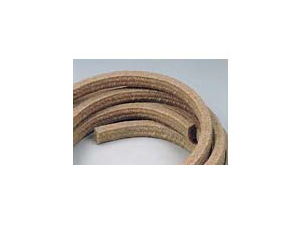

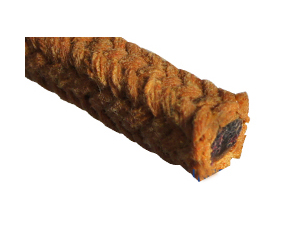

Vegetable fiber packing is a specialized, environmentally conscious sealing material engineered for demanding applications involving hot water, steam, and various industrial fluids. Primarily composed of long, resilient fibers derived from plants like cotton or flax, it is often impregnated with lubricants and other compounds to enhance its performance characteristics. Unlike synthetic alternatives, it offers a unique combination of biodegradability, effective sealing under moderate pressures and temperatures, and excellent friction properties. At Kaxite Seals, we have refined this traditional material into a high-performance product line, ensuring reliability and sustainability for modern sealing challenges.
Kaxite Seals vegetable fiber packing is engineered to precise standards. Below are the detailed parameters that define our product range.
| Parameter | Specification / Range | Notes |
|---|---|---|
| Temperature Range | -20°C to +120°C (-4°F to +248°F) Standard Up to +300°C (+572°F) for special high-temp grades |
Continuous operation. Short peaks may be tolerable. |
| pH Range | 4 - 12 | Optimal performance within this range. Consult for extreme pH. |
| Pressure | Up to 15 bar (217 psi) for rotating shafts Up to 100 bar (1450 psi) for valves & static applications |
Dependent on shaft speed and equipment condition. |
| Shaft Speed | Up to 5 m/s (16 ft/s) | Suitable for moderate speed pumps and mixers. |
| Density | Approx. 1.1 - 1.3 g/cm³ | Varies slightly with impregnation type. |
| Chemical Resistance | Excellent resistance to hot water, steam, alkalis, ammonia, alcohols, many organic solvents. Fair to poor resistance to strong acids and oxidizing agents. | Always request a chemical compatibility chart. |
| Cross-Section (Square) | Standard Spool Length | Core Size | Packaging |
|---|---|---|---|
| 3 mm (1/8") | 30 meters (98 feet) | 76 mm (3") | Polybag in cardboard box |
| 5 mm (3/16") | 20 meters (66 feet) | 76 mm (3") | Polybag in cardboard box |
| 6 mm (1/4") | 15 meters (49 feet) | 152 mm (6") | Polybag in cardboard box |
| 10 mm (3/8") | 10 meters (33 feet) | 152 mm (6") | Polybag in cardboard box | 13 mm (1/2") | 10 meters (33 feet) | 152 mm (6") | Polybag in cardboard box |
| 16 mm (5/8") | 5 meters (16 feet) | 152 mm (6") | Polybag in cardboard box |
Kaxite Seals vegetable fiber packing is a versatile solution trusted across multiple sectors.
Proper installation is critical to achieving the full service life of any packing. Follow these key steps for Kaxite Seals vegetable fiber packing.
Q: What is the main difference between vegetable fiber packing and PTFE or graphite packing?
A: The primary differences lie in material composition, temperature limits, and chemical resistance. Vegetable fiber packing is made from renewable plant fibers and is biodegradable, best for moderate temperatures (typically up to 120°C standard) and specific chemical services like hot water, steam, and alkalis. PTFE and graphite packings are synthetic, suitable for much higher temperatures and a broader, more aggressive chemical range, but they are not biodegradable. Kaxite Seals vegetable fiber offers an optimal balance of performance, cost, and environmental consideration for its target applications.
Q: Can Kaxite Seals vegetable fiber packing be used on centrifugal pumps?
A: Yes, it is commonly used on centrifugal pumps handling hot water, condensate, and compatible chemicals at moderate speeds and pressures. It is crucial to adhere to the recommended shaft speed limit (up to 5 m/s) and ensure proper installation and adjustment to prevent excessive friction and heat buildup.
Q: How do I know which cross-sectional size to order?
A: The packing cross-section is determined by the clearance between the shaft/stem and the stuffing box wall. Measure the inner diameter (ID) of the stuffing box and the outer diameter (OD) of the shaft. The formula is: (Stuffing Box ID - Shaft OD) / 2. Select the standard Kaxite Seals size closest to this calculated value. For example, a 50 mm shaft in a 62 mm box gives a (62-50)/2 = 6 mm required size.
Q: Is this packing suitable for drinking water applications?
A: Standard Kaxite Seals vegetable fiber packing uses lubricants and treatments that may not be certified for direct, prolonged contact with potable water. For drinking water applications, we offer a special NSF/ANSI 61 or WRAS-approved grade. Please contact our technical team to specify this requirement.
Q: How many packing rings should I install in a stuffing box?
A: The general rule is to install enough rings to fill the stuffing box without overpacking. This is typically 4 to 6 rings for most applications. A good practice is to divide the stuffing box depth by the packing cross-section. There should be enough room for the gland follower to compress the packing adequately.
Q: What causes vegetable fiber packing to fail prematurely?
A: Premature failure is often due to incorrect installation (square-cut joints, dirty box), application beyond its limits (excessive temperature, pressure, or incompatible chemical), over-tightening of the gland (causing friction burn), or running on a damaged or scored shaft/stem. Always ensure the application matches the product specifications and that installation guidelines are followed precisely.
Q: Does Kaxite offer custom sizes or special impregnations?
A: Yes. While we stock a comprehensive range of standard sizes, Kaxite Seals can manufacture custom cross-sections, lengths, and spool sizes. We also develop special impregnation formulas for unique chemical resistance or lubrication requirements. Contact our engineering department with your specific needs.
