Ensuring Electrical Isolation and Corrosion Protection in Piping Systems
In complex industrial piping networks, particularly those involving cathodic protection systems or conveying electrolytes, preventing galvanic corrosion and stray electrical currents is paramount. This is where specialized components come into play. Flange insulation gasket kits are engineered solutions designed to provide complete electrical isolation at the connection point between pipe flanges. By interrupting the electrical continuity, these kits protect critical infrastructure from costly corrosion damage, enhance safety by reducing fire risks from sparking, and ensure the proper functioning of cathodic protection systems. For engineers, maintenance teams, and procurement specialists, selecting a robust and reliable insulation kit is not an accessory but a necessity for system integrity.
At Kaxite Seals, we have dedicated decades to mastering the science of sealing and isolation. Our flange insulation kits are not merely collections of parts; they are precision-engineered systems. We understand that failure at a single flange can lead to unplanned downtime, environmental hazards, and significant financial loss. Therefore, every Kaxite Seals kit is designed with an uncompromising focus on material performance, dimensional accuracy, and long-term durability under the most challenging operating conditions.
Core Components of a Superior Insulation Kit

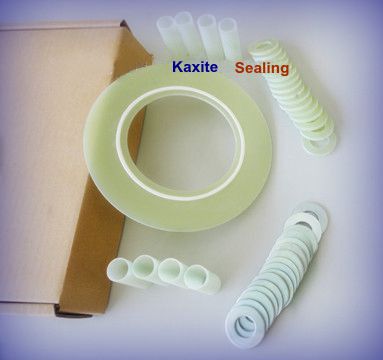

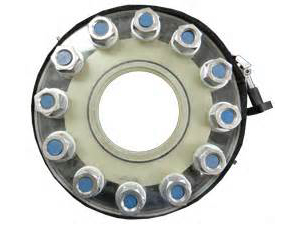

A comprehensive flange insulation gasket kit must address all potential electrical pathways. A typical Kaxite Seals kit includes the following key components, each serving a vital function:

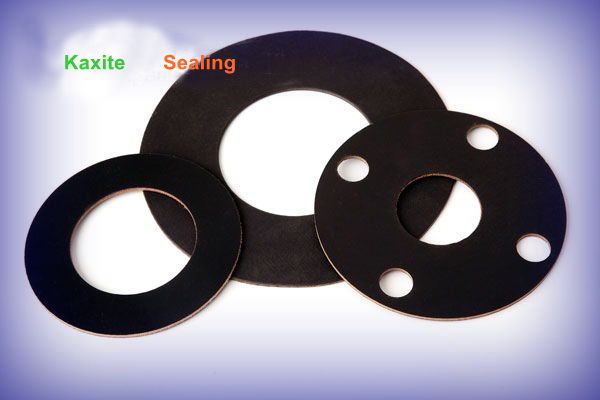

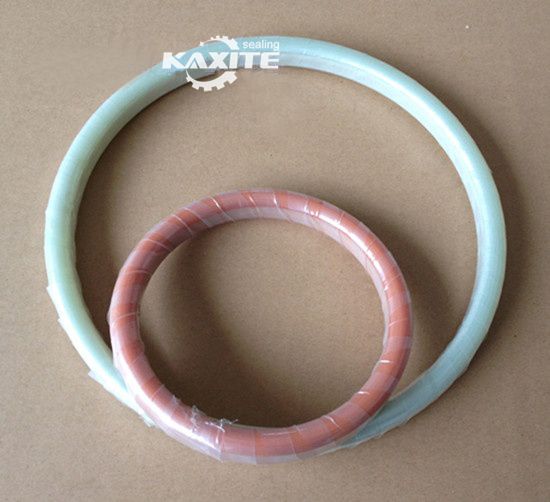

- Insulating Gasket: The primary barrier, placed between the flange faces. Made from durable dielectric materials like PTFE (Teflon), FEP, or specialty engineered polymers to block current flow.
- Insulating Sleeves (Bushings): Fit over the bolts or studs to prevent them from creating an electrical bridge between the two flanges.
- Insulating Washers: Placed under both the bolt head and the nut, forming a complete insulating barrier along the entire length of the fastener.
- Steel Washers: Used on the outer sides of the insulating washers to distribute the clamping load evenly and prevent damage to the softer insulating components during tightening.
- Centralizing Ring (Optional but Recommended): Ensures perfect alignment of the insulating gasket during assembly, preventing misalignment that could compromise the seal or insulation.
Detailed Product Specifications & Technical Data
Selecting the correct kit requires a detailed understanding of your application parameters. Below are the critical specifications for Kaxite Seals Flange Insulation Gasket Kits, presented to aid in your selection process.
Material Specifications & Performance
| Component | Standard Material | Alternative Materials | Key Properties | Typical Temperature Range |
|---|---|---|---|---|
| Insulating Gasket | Virgin PTFE (Polytetrafluoroethylene) | FEP, PFA, Filled PTFE, Gylon® | Excellent dielectric strength, chemical inertness, low creep | -200°C to +260°C (-328°F to +500°F) |
| Insulating Sleeves & Washers | PTFE or High-Strength Phenolic | PEEK, Ceramic-filled Polymers | High compressive strength, low moisture absorption | Up to 150°C (302°F) for Phenolic |
| Steel Washers | Carbon Steel, Zinc Plated | 304/316 Stainless Steel, Hot-Dip Galvanized | High load distribution, corrosion resistance | Dependent on coating/base metal |
Dimensional & Electrical Standards
| Parameter | Specification | Testing Standard |
|---|---|---|
| Dielectric Strength (Gasket) | > 5 kV/mm | ASTM D149 |
| Volume Resistivity | > 1 x 10^15 Ω·cm | ASTM D257 |
| Flange Standards | ANSI B16.5, B16.47, AS2129, BS10, DIN, JIS | Per relevant flange standard |
| Pressure Rating | Rated to match the flange class (150#, 300#, 600#, etc.) | ASME B16.20 / B16.21 |
| Kit Sizes | 1/2" to 60" NB, larger sizes available on request. | N/A |
Kaxite Seals Flange Insulation Kit FAQ
Application & Selection
Where are flange insulation gasket kits typically required?
These kits are essential in pipelines where electrical isolation is needed to prevent galvanic corrosion. Common applications include: pipelines at compressor stations, pumping stations, and tank farms; wellheads and flow lines in oil & gas production; seawater cooling systems and shipboard piping; pipelines for electrolytic processes in chemical plants; and any system protected by an impressed current or sacrificial anode cathodic protection system.
How do I select the right kit for my application?
You need to specify five key parameters: Flange Standard and Class (e.g., ANSI 150# RF), Nominal Pipe Size (NPS) and Flange Face Outer Diameter, Bolt Circle Diameter and Bolt Hole Size/Quantity, Operating Temperature and Media, and any Specific Material Certifications required (e.g., NACE MR0175 for sour service). Providing a flange drawing is the most reliable method to ensure a perfect fit.
Can these kits handle high pressure and temperature?
Yes, when selected correctly. The pressure capability is determined by the combination of the flange rating and the gasket material's performance under load. Standard PTFE gaskets are suitable for lower-pressure classes at moderate temperatures. For higher pressures/temperatures, Kaxite Seals offers reinforced or filled PTFE grades (like Glass or Graphite filled) or alternative high-performance polymers like PEEK, which offer superior creep resistance and can handle classes up to 900# or higher in specific sizes.
Installation & Performance
What is the correct installation procedure for an insulation kit?
Proper installation is critical. Ensure flange faces are clean, smooth, and undamaged. Insert the insulating sleeves into each bolt hole. Place the centering ring (if supplied) and then the insulating gasket between the flanges. Align the bolt holes. For each bolt, assemble in this order from the head down: Steel Washer, Insulating Washer, then bolt through the sleeve, followed by Insulating Washer and Steel Washer on the nut side. Tighten bolts gradually in a cross-pattern sequence to the recommended torque value for the specific bolt size and material to ensure even gasket compression without crushing the insulating components.
How can I verify the electrical isolation is effective after installation?
Isolation should be verified using a properly calibrated megohmmeter (megger). Test the resistance between the two flanges and from each flange to earth. A successful installation should show a very high resistance reading, typically in the megaohm or gigaohm range, confirming there is no conductive path. Regular re-testing as part of a maintenance schedule is recommended to ensure ongoing integrity.
What causes an insulation kit to fail prematurely?
Common causes include: incorrect installation torque (over-tightening crushes insulation, under-tightening leads to leakage), chemical incompatibility of gasket material with the process fluid, exposure to temperatures beyond the material's rated range, physical damage to components during handling or assembly, and the use of non-insulated tools during installation that can scratch and create conductive paths on the dielectric surfaces.
About Kaxite Seals Products
What makes Kaxite Seals insulation kits different from others on the market?
Kaxite Seals kits are distinguished by precision engineering and quality control. We use premium-grade, traceable raw materials. Our components are machined to exacting tolerances for a perfect fit, eliminating field modifications. Each kit is supplied with clear installation instructions and torque specifications. Furthermore, we offer expert technical support to help you select the optimal material and configuration for your specific service conditions, ensuring long-term, trouble-free performance.
Do you offer custom kits for non-standard flanges or special requirements?
Absolutely. While we stock kits for standard flange dimensions, a significant portion of our work involves engineering custom solutions. This includes kits for large-diameter or odd-sized flanges, special material combinations for extreme chemical or thermal environments, kits with integrated sensing for monitoring isolation integrity, and bundles that include all necessary gaskets, bolts, and insulation components for a complete joint assembly.
Are Kaxite Seals kits compliant with industry standards?
Yes. Our manufacturing processes and materials are designed to meet or exceed relevant international standards such as ASME B16.20, ISO 15614 (for procedures), and NACE MR0103/MR0175 for corrosion-resistant materials in sour environments. Material test certificates (MTCs) and certificates of conformity are available upon request to support your quality assurance and audit requirements.
