In the demanding world of industrial sealing, the quality of a gasket is only as good as the precision of the cut. At Kaxite Seals, we understand this fundamental principle. For decades, we have not only supplied top-tier sealing solutions but have also pioneered the development of advanced machinery to produce them. Our range of specialized machines for cut gaskets represents the pinnacle of accuracy, efficiency, and reliability, engineered to meet the stringent requirements of industries worldwide. From high-pressure pipelines in the oil and gas sector to delicate assemblies in aerospace and pharmaceutical applications, the right cutting technology is non-negotiable. This article delves into the technical specifications, operational advantages, and critical considerations of modern gasket cutting machinery, showcasing why Kaxite Seals is your trusted partner in precision fabrication.
Modern gasket fabrication utilizes several key technologies, each suited for specific materials, volumes, and precision levels. Kaxite Seals offers a comprehensive portfolio, ensuring you have the optimal tool for your production needs.
Selecting the right machine requires a deep understanding of your production parameters. Below is a detailed breakdown of the critical specifications to consider for machines for cut gaskets.
| Parameter | Description & Importance | Typical Range (Kaxite Models) |
|---|---|---|
| Cutting Force / Power | Determines the thickness and density of materials that can be cut effectively. Hydraulic presses are rated in tons; lasers in watts. | Presses: 20 - 300 Tons | Lasers: 500W - 6kW |
| Working Area / Table Size | The maximum sheet or roll width the machine can accommodate. Dictates the size of gaskets or the number of parts nested per cycle. | From 600mm x 600mm to 2000mm x 4000mm+ |
| Positioning Accuracy | The precision with which the cutting head or die can be positioned. Directly impacts part tolerance and consistency. | ±0.05mm to ±0.005mm |
| Cutting Speed | Directly affects throughput. Varies greatly by technology and material. | Die Cutting: 50-150 strokes/min | Laser: 1-100 m/min |
| Material Thickness Capacity | The range of material gauges the machine is designed to handle without loss of quality. | 0.2mm - 50mm (varies by technology) |
The choice of machine is heavily influenced by the gasket materials you process. Kaxite Seals provides machinery tested and optimized for the full spectrum of sealing materials.
| Material Type | Recommended Cutting Technology | Key Considerations |
|---|---|---|
| Rubber (NBR, EPDM, Silicone, FKM) | CN Rotary Die, Flatbed Press | Die hardness and sharpness; kiss-cutting for adhesive-backed types. |
| Compressed Non-Asbestos (CNAF) / Fiber | CN Rotary Die, Flatbed Press, Laser | Dust extraction is critical. Laser can seal edges to prevent fraying. |
| PTFE (Teflon) & Expanded PTFE | Laser, Waterjet, Precision Die | PTFE is soft and can deform under die pressure; laser offers clean, sealed edges. |
| Metallic Gaskets (Soft Iron, Stainless Steel) | Waterjet, High-Tonnage Press, Fiber Laser | Requires significant force or abrasive/ high-power cutting. Tool wear is a factor. |

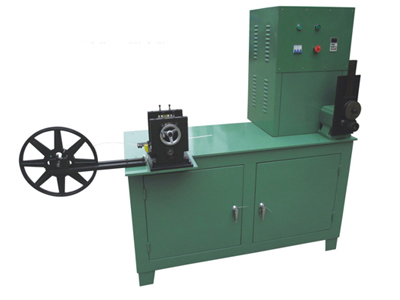

| Spiral Wound & Camprofile Filler | Specialized Shearing/Cutting | Often involves cutting the metal winding; requires custom tooling to prevent unraveling. |
| Composite & Multi-layer Materials | Flatbed Press with Kiss Control, Waterjet | Need consistent pressure to cut all layers without delamination. |
Q: What are the main advantages of a CNC rotary die cutter over a flatbed press?
A: CNC rotary die cutting offers significantly higher production speeds for long runs, as it cuts from a continuous roll. It provides excellent precision and repeatability with less wear on the die due to a rolling action. It's ideal for thinner materials and kiss-cutting applications. Flatbed presses, while slower, are more versatile for single sheets, extremely thick or multi-layered materials, and often have a lower initial tooling cost for short runs.
Q: When should I consider a laser cutting system for gaskets instead of traditional die cutting?
A: Consider laser cutting when you require: 1) Extreme flexibility for prototypes and frequent design changes (no physical die needed), 2) The highest level of intricate detail and complex geometries, 3) Processing of heat-sensitive materials where a CO2 laser's minimal heat input is acceptable, or 4) A desire to eliminate ongoing die maintenance and storage costs. It is generally more cost-effective for low to medium volume, high-mix production.
Q: How does Kaxite Seals ensure the precision and longevity of its cutting machinery?
A: Kaxite Seals machines are built with a foundation of rigid, vibration-dampening frames and high-precision linear guide systems. We use only premium-grade servomotors and drives for accurate positioning. Our proprietary software includes advanced calibration routines. Furthermore, we subject every machine to a rigorous performance acceptance test (PAT) using certified measurement equipment before shipment, ensuring it meets our strict tolerance standards. Regular maintenance schedules and genuine Kaxite parts are recommended for optimal longevity.
Q: What is "kiss-cutting" and why is it important for certain gasket types?
A: Kiss-cutting is a process where the blade cuts through the top layer of material (e.g., rubber or foam with an adhesive) but stops precisely before cutting through the backing liner or release paper. This allows the finished gaskets to remain on the liner for easy storage, handling, and application. It is absolutely critical for producing pressure-sensitive adhesive (PSA) gaskets and seals used in electronics, automotive trim, and appliance assembly. Both specialized die cutters and digital cutting systems can perform kiss-cutting.
Q: Can your machines integrate with our existing factory automation or ERP systems?
A: Yes, a core design philosophy at Kaxite Seals is interoperability. Our machines come with standard industrial communication protocols (such as Ethernet/IP, Profinet, or Modbus TCP). This allows for seamless integration with Material Requirements Planning (MRP) or Enterprise Resource Planning (ERP) systems for job scheduling and tracking. We also design with standardized interfaces to facilitate integration with robotic arms for automated loading/unloading and conveyor systems for inline production flows.
Q: What factors most significantly impact the per-part cost when using these machines?
A: The key cost drivers are: 1) Material Utilization: Efficient nesting software is vital to minimize waste. 2) Tooling Cost & Life: Hard steel dies have a high upfront cost but long life for high volume; laser consumables (nozzles, lenses) and waterjet abrasive are ongoing costs. 3) Cycle Time: Faster machines reduce labor and overhead cost per part. 4) Labor: Automated machines reduce direct labor costs. 5) Secondary Operations: A clean cut from a laser or waterjet may eliminate deburring, reducing post-processing cost.
Investing in a machine for cut gaskets is a significant decision. Kaxite Seals supports you beyond the sale with comprehensive services designed to maximize your return on investment and ensure continuous, trouble-free operation.
