High-Quality Expanded Graphite Gaskets from a Reliable Chinese Manufacturer

In the demanding world of industrial sealing, where extreme temperatures, aggressive chemicals, and high pressures are the norm, engineers and maintenance professionals require a material that offers uncompromising reliability. Expanded graphite gaskets have emerged as the premier solution for these challenging applications. Unlike traditional materials, expanded graphite, also known as flexible graphite, is manufactured by exfoliating natural graphite flakes, resulting in a pure, non-metallic material with exceptional sealing properties. Kaxite Seals has leveraged over two decades of material science expertise to perfect our expanded graphite gasket offerings, providing a robust, long-lasting seal for flange connections across countless industries.

The core advantage of our gaskets lies in the intrinsic properties of expanded graphite. It is inherently self-laminating, forming a cohesive, low-creep seal that conforms perfectly to flange faces, even those with minor imperfections. This characteristic ensures a tight seal from the initial bolt-up and maintains it throughout thermal cycles and system vibrations. For industries prioritizing safety, efficiency, and reduced maintenance downtime, specifying a high-quality expanded graphite gasket is not just an option—it's a critical decision.

Unmatched Product Specifications & Technical Data

Kaxite Seals' expanded graphite gaskets are engineered to meet and exceed international standards. Our products are available in a variety of forms—plain sheets, metal-reinforced composites, and die-cut shapes—to suit specific application requirements. Below is a detailed breakdown of our standard material properties and available configurations.

Key Material Properties of Kaxite Seals Expanded Graphite

• Temperature Range: Capable of continuous operation from cryogenic temperatures as low as -240°C (-400°F) up to an oxidizing limit of 450°C (842°F) in air. In non-oxidizing or inert atmospheres, the service temperature can extend to 3000°C (5432°F).
• Chemical Compatibility: Exhibits outstanding resistance to a vast array of chemicals, including acids (except strong oxidizing acids), alkalis, solvents, and hydrocarbons. It is also resistant to radiation.
• Thermal Conductivity: High thermal conductivity facilitates efficient heat transfer across the flange, reducing thermal stress and hot spots.
• Compressibility & Recovery: Excellent compressibility (40-60%) allows for effective sealing at low bolt loads. High recovery (>15%) enables the gasket to maintain seal integrity during pressure and temperature transients.
• Creep Relaxation: Exceptionally low creep relaxation ensures the sealing force is maintained over long periods, preventing leaks.
• Density Range: Typically supplied in densities ranging from 0.9 g/cm³ to 1.3 g/cm³, allowing for optimization between sealing performance and material usage.

Standard Product Configurations & Specifications

Kaxite Seals also provides custom fabrication. We can die-cut, water-jet, or laser-cut gaskets to any shape, size, or complexity from our standard sheet stock or reinforced materials, complete with precision bolt holes and alignment features.

Frequently Asked Questions (FAQ) About Expanded Graphite Gaskets

Q: What are the primary advantages of using expanded graphite gaskets over traditional asbestos or compressed non-asbestos (CNAF) gaskets?

A: Expanded graphite gaskets offer superior performance in several key areas. They have a much wider temperature range, especially on the high end. They provide better chemical resistance to a broader spectrum of media. Their creep relaxation is significantly lower, meaning they maintain bolt load and seal tightness far longer than CNAF gaskets. They are also inherently fire-safe, as graphite does not burn, and they are non-toxic, unlike asbestos.

Q: Can Kaxite Seals expanded graphite gaskets be used for all chemical services?

A: While expanded graphite is exceptionally resistant to most chemicals, there are specific limitations. It is not recommended for use with strong oxidizing agents such as concentrated nitric acid, sulfuric acid above 98%, or bromine at high temperatures. For these services, PTFE-based gaskets may be more suitable. Always consult Kaxite Seals' chemical resistance guide or our engineering team for your specific media.

Q: How do I select the correct density and thickness for my application?

A: Selection depends on flange conditions and service parameters. For standard flange faces (Ra 3.2-6.3 µm) and general service, a density of 1.1 g/cm³ and a thickness of 1.5mm is common. Higher density (1.3 g/cm³) offers lower creep and better handling for thicker sheets. Thinner gaskets (0.5mm-1.0mm) are used for low bolt load or confined spaces, while thicker ones (2.0mm+) are for uneven flanges. Our technical team can provide precise recommendations based on your pressure, temperature, and flange design.

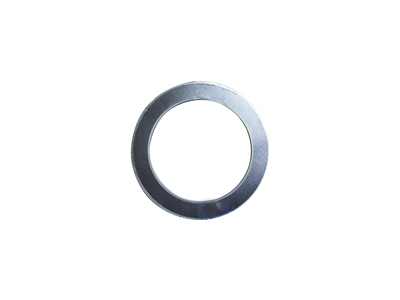

Q: What is the significance of metal reinforcement in an expanded graphite gasket?

A: Metal reinforcement, such as a solid or perforated core, adds mechanical strength and dimensional stability to the gasket. It prevents blow-out under high pressure or vacuum conditions, reduces overall creep, and makes the gasket easier to handle and install, especially in large diameters. It is essential for high-pressure applications, heat exchangers, and for gaskets with large bore diameters.

Q: Are there any special handling or installation requirements for expanded graphite gaskets?

A: Yes, proper handling is crucial. While robust when reinforced, plain graphite sheets are somewhat delicate. Avoid folding or creasing. Always store them in a dry environment. During installation, ensure flange faces are clean, undamaged, and properly aligned. Follow recommended bolt torque sequences and values—over-torquing can crush and weaken the graphite, while under-torquing may lead to insufficient initial seal. Do not use sealants or lubricants on the gasket faces unless specifically recommended.

Q: How do Kaxite Seals' expanded graphite gaskets perform in fire-safe testing?

A: Our metal-reinforced expanded graphite gaskets are rigorously tested and certified to meet major international fire-safe standards, including API 607, API 6FB, and ISO 10497. In a fire situation, the graphite facing does not burn; it may only oxidize slowly at the very edges if exposed directly to flame in an oxygen-rich environment. The metal core retains its integrity, maintaining a barrier against catastrophic leakage. This makes them the preferred choice for critical services in refineries, chemical plants, and offshore platforms.

Q: Can these gaskets be used in oxygen service?

A: For oxygen and other strong oxidant services, special precautions are necessary. Standard expanded graphite gaskets can contain small amounts of sulfur, which is a contaminant in high-pressure oxygen systems. Kaxite Seals offers specially cleaned, ultra-high purity expanded graphite grades with certified low sulfur and chloride content, making them suitable for such demanding applications when selected and installed according to strict cleaning and handling protocols (e.g., ASTM G93).

Industry Applications & Why Choose Kaxite Seals

The versatility of expanded graphite gaskets makes them indispensable across a wide spectrum of industries. They are the gasket of choice for:

• Petrochemical & Refining: Heat exchangers, reactor flanges, valve bonnets, and piping systems handling hydrocarbons, steam, and process chemicals.
• Power Generation: High-temperature steam lines, turbine casings, and boiler applications in both fossil fuel and nuclear plants.
• Chemical Processing: Aggressive acid and alkali services, polymer production, and pharmaceutical manufacturing where purity and chemical resistance are paramount.
• Oil & Gas (Upstream & Midstream): Wellhead equipment, pipeline flanges, compressor stations, and LNG facilities, often requiring fire-safe certification.
• Heating & HVAC: Gaskets for high-temperature heat transfer fluids in industrial heating systems.

Choosing Kaxite Seals means partnering with a specialist focused on sealing solutions. Our commitment goes beyond supplying a product. We provide:

• Material Consistency: We control our raw material sourcing and production process to ensure every batch of graphite meets our exacting standards for purity, density, and performance.
• Technical Expertise: Our engineering support team can assist with material selection, design review, and failure analysis to optimize your sealing strategy.
• Certification & Traceability: Full material test certificates (MTCs) and batch traceability are available for all products, supporting quality assurance and safety documentation requirements.
• Global Supply & Customization: With a robust logistics network and advanced fabrication capabilities, we deliver standard and custom solutions reliably, anywhere in the world.
