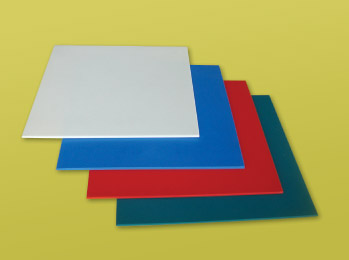

PTFE Resin Moded Sheet

Length(mm)×Width(mm)

Thickness(mm)

Nominal

Tolerance

150×150

1.0-30

±0.30-±0.50

250×250

1.5-30

±0.30-±0.50

300×300

1.5-30

±0.30-±0.50

450×450

1.5-30

±0.30-±0.50

600×600

2-30

±0.30-±0.50

800×800

3-30

±0.30-±0.50

1000×1000

3-30

±0.30-±0.50

1200×1200

3-30

±0.30-±0.50

1000×2000

5-35

±0.30-±0.60

1500×1500

1800×1800

2000×2000

Properties

Unit

Result

Apparent density

g/cm³

2.10-2.30

Tensile strength (min)

MPa

15.0

Ultimate elongation (min)

%

150

Dielectric strength(min)

KV/mm

10
